HGP.0E Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Color	Mounting Type	Shielding	Material Flammability Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Fastening Type	Current Rating (Amps)	Insert Material	Contact Material	Mounting Feature	Contact Finish - Mating	Features	Shell Size - Insert	Shell Finish	Primary Material	Ingress Protection	Shell Material	Center Contact Plating	Body Finish	Mating Cycles	Body Material	Dielectric Material	Includes	Connector Style	Center Contact Material	Housing Color	Contact Termination	Number of Ports	Shield Termination	Impedance	Cable Group
LEMO HGP.0E.304.CLLP	Silver	Panel Mount	Shielded	UL94 V-0	Keyed	-20 ░C	100 °C	4	Receptacle Female Sockets and Male Pins	Push-Pull	7 A	Polyetheretherketone (PEEK)	Brass Bronze	Bulkhead - Rear Side Nut	Gold	Potted	304	Chrome	Metal	IP68 - Dust Tight Waterproof	Brass
LEMO HGP.0E.403.CTLPV	Silver	Panel Mount	Shielded		Keyed	-20 ░C	100 °C	1	Receptacle Female Sockets	Push-Pull	4 A	Polyetheretherketone (PEEK)	Bronze	Bulkhead - Rear Side Nut	Gold	Potted Vacuumtight	403	Chrome	Metal	IP68 - Dust Tight Waterproof	Brass

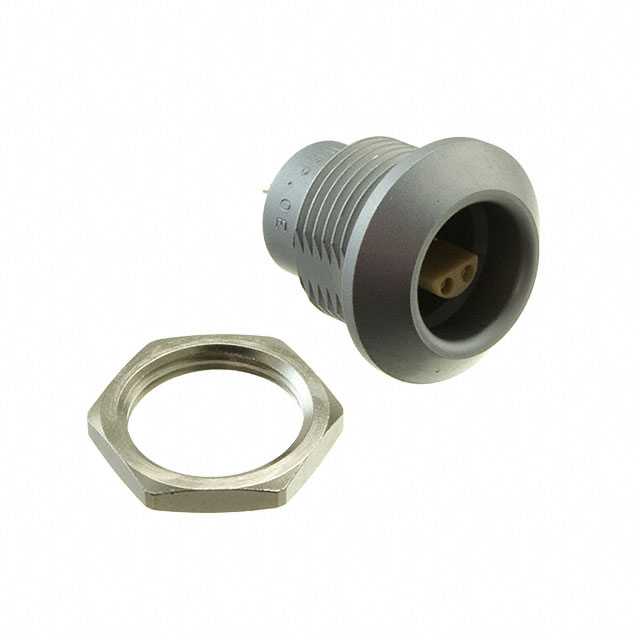

LEMO HGP.0E.304.CLLPV	Silver	Panel Mount	Shielded	UL94 V-0	Keyed	-20 ░C	100 °C	4	Receptacle Female Sockets and Male Pins	Push-Pull	7 A	Polyetheretherketone (PEEK)	Brass Bronze	Bulkhead - Rear Side Nut	Gold	Potted Vacuumtight	304	Chrome	Metal	IP68 - Dust Tight Waterproof	Brass
LEMO HGP.0E.650.CTLP		Panel Mount				-20 ░C	100 °C		Receptacle Female Socket	Push-Pull				Bulkhead - Rear Side Nut						IP68 - Dust Tight Waterproof		Gold	Chrome	5000	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Triaxial	Beryllium Copper	Silver	Solder Cup	1	Solder	50 Ohms	RG-174 RG-178
LEMO HGP.0E.250.CTLP		Panel Mount				-20 ░C	100 °C		Receptacle Female Socket	Push-Pull				Bulkhead - Rear Side Nut						IP68 - Dust Tight Waterproof		Gold	Chrome	5000	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Coaxial	Beryllium Copper	Silver	Solder Cup		Solder	50 Ohms	174 174A 178B 188A 196A 316B RG-122
LEMO HGP.0E.302.CLLP	Silver	Panel Mount	Shielded	UL94 V-0	Keyed	-20 ░C	100 °C	2	Receptacle Female Sockets and Male Pins	Push-Pull	10 A	Polyetheretherketone (PEEK)	Brass Bronze	Bulkhead - Rear Side Nut	Gold	Potted	302	Chrome	Metal	IP68 - Dust Tight Waterproof	Brass
LEMO HGP.0E.250.CTLPV		Panel Mount				-20 ░C	100 °C		Receptacle Female Socket	Push-Pull				Bulkhead - Rear Side Nut		Vacuumtight				IP68 - Dust Tight Waterproof		Gold	Chrome	5000	Brass	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Coaxial	Beryllium Copper	Silver	Solder Cup	1	Solder	50 Ohms	174 174A 178B 188A 196A 316B RG-122

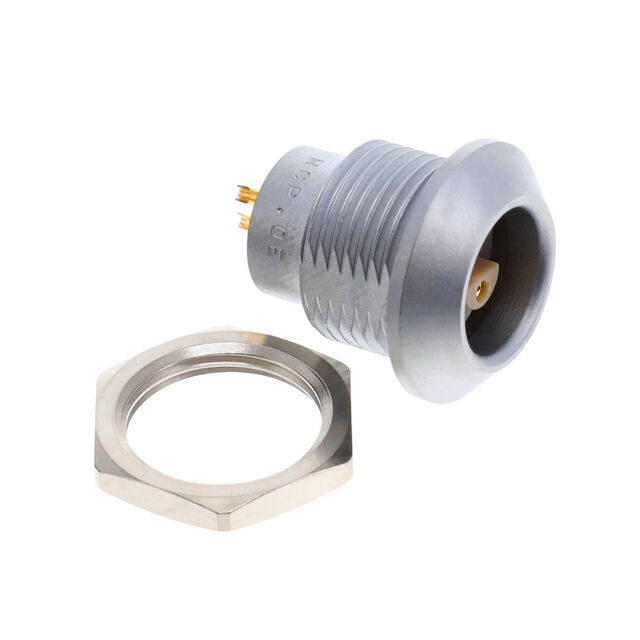

LEMO HGP.0E.302.CLLPV	Silver	Panel Mount	Shielded	UL94 V-0	Keyed	-20 ░C	100 °C	2	Receptacle Female Sockets and Male Pins	Push-Pull	10 A	Polyetheretherketone (PEEK)	Brass Bronze	Bulkhead - Rear Side Nut	Gold	Potted Vacuumtight	302	Chrome	Metal	IP68 - Dust Tight Waterproof	Brass
