HCF Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

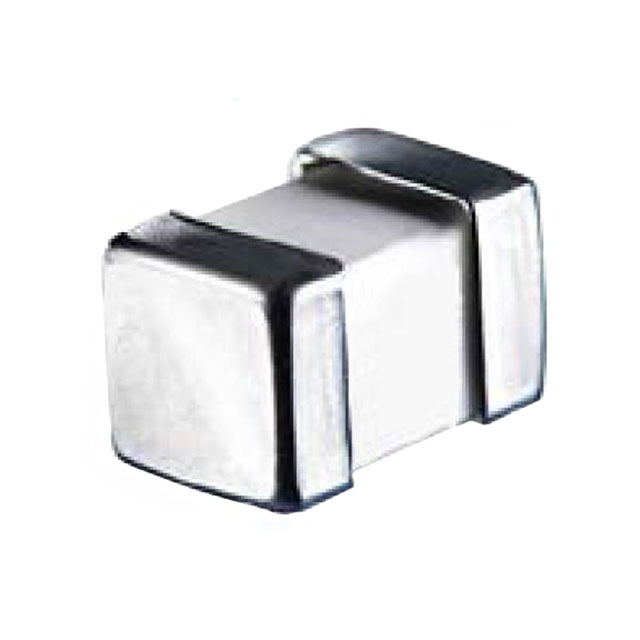

SURFACE MOUNT FUSES FAST ACTING 125VAC HCF 7.5A SOLD PER PC
| Part | DC Cold Resistance | Current Rating (Amps) | Fuse Type | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Approval Agency | Mounting Type | Package / Case | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.0095 Ohms | 7.5 A | Cartridge Ceramic | 1 kA | 125 VDC | 8 mm | 0.197 " | 0.315 in | 5 mm | 5 mm | 0.197 " | UL | Surface Mount | 2-SMD Square End Block | Fast Blow | 125 °C | -50 °C | 125 V | 5.6 I²t |
