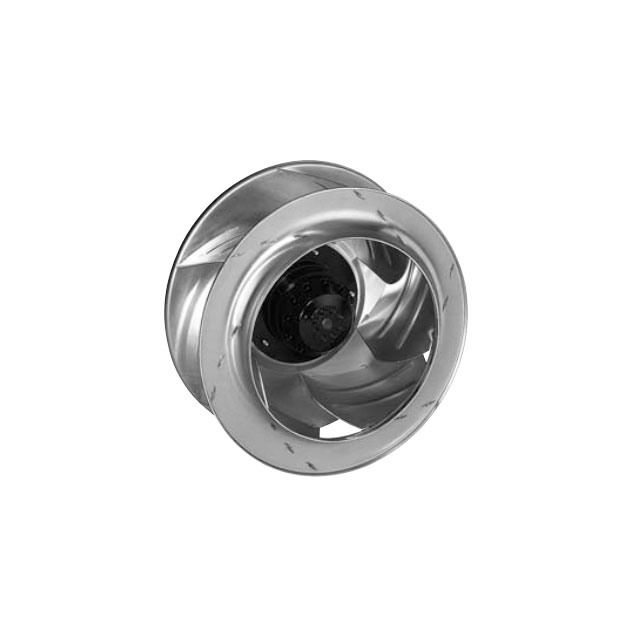

MOTORIZED IMPELLER
| Part | Material - Blade | Current Rating (Amps) | Termination | Voltage - Rated | Ingress Protection | Power (Watts) | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Width [y] | Fan Type | Approval Agency | Size / Dimension [diameter] | Size / Dimension | Bearing Type | Width [x] | Noise | Weight | Weight | Air Flow | Air Flow | Material - Blade [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) | 1.2 A | 4 Wire Leads with Splice Terminals | 230 VAC | IP44 | 270 W | 1630 RPM | -25 °C | 25 °C | 25 °C | -25 °C | Capacitor Thermal Overload Protector (TOP) | 165.5 mm | Motorized Impellers | CSA UL | 360 mm | Round | Ball | |||||||
 ebm-papst Inc. | 115 VAC | Capacitor | Motorized Impellers | 360 mm | Round | Ball | 171 mm | ||||||||||||||||||
 ebm-papst Inc. | Polyamide (PA) Nylon | 2 Wire Leads | 230 VAC | 270 W | 1630 RPM | 149 mm | Motorized Impellers | 360 mm | Round | Ball | 70 dB(A) | 9.7 lbs | 4.4 kg | 45.14 m³/min | 1612 CFM | ||||||||||
ebm-papst Inc. | 1.14 A | 6 Wire Leads with Splice Terminals | 230 VAC | 260 Watts | 1600 RPM | -25 °C | 40 °C | 40 °C | -25 °C | Capacitor Thermal Overload Protector (TOP) | 167 mm | Motorized Impellers | CCC | 360 mm | Round | Ball | Aluminum | ||||||||
ebm-papst Inc. | Polyamide (PA) Nylon | 2 Wire Leads | 115 VAC | 270 W | 1630 RPM | 149 mm | Motorized Impellers | 360 mm | Round | Ball | 70 dB(A) | 9.7 lbs | 4.4 kg | 45.14 m³/min | 1612 CFM |
