RV40 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

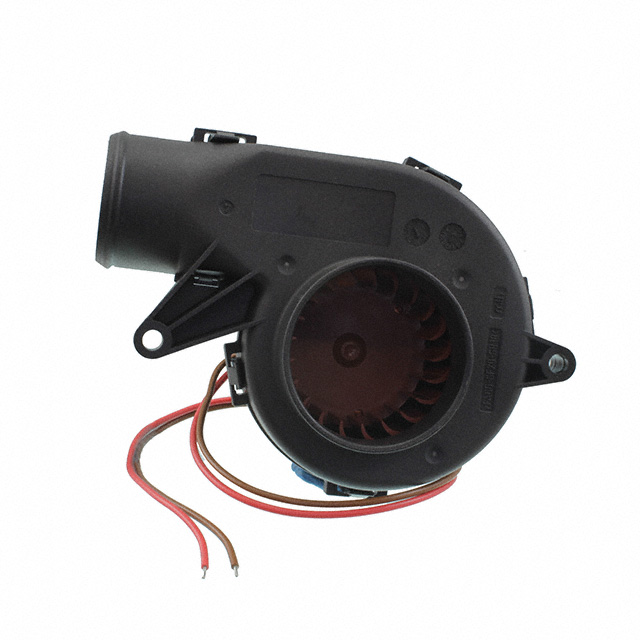

FAN BLOWER CF 105X58.85MM 12VDC
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Material - Frame | Lifetime @ Temp. | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Fan Type | Voltage - Rated | Termination | Air Flow | Air Flow | Bearing Type | Power (Watts) | Width [x] | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 16 V | 9 V | Fiberglass Reinforced Plastic | Fiberglass Reinforced Plastic | 40 °C 50000 Hrs | Rectangular/Rounded | 77.3 mm | 105 mm | Blower Centrifugal | 12 VDC | 3 Wire Leads | 14.1 CFM | 0.395 m³/min | Ball | 4.5 W | 58.85 mm | 4800 RPM | -20 ░C | 70 °C | Locked Rotor Protection Speed Sensor (Tach) |
