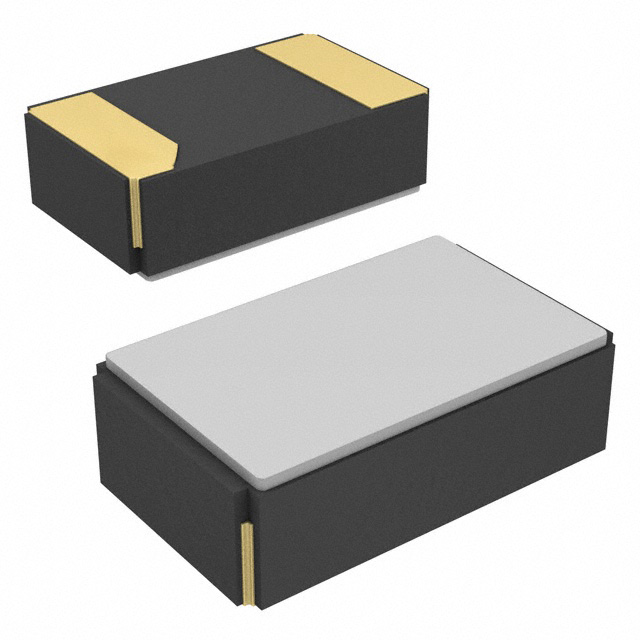

ECX-12 Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 32.786KHZ 9PF 10PPM -40C +85C

Part	Frequency Tolerance	Type	Operating Mode	Load Capacitance	Mounting Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Package / Case
ECS Inc. ECS-.327-9-12-C-TR	10 ppm	kHz Crystal (Tuning Fork)	Fundamental	9 pF	Surface Mount	0.032768 MHz	85 °C	-40 C	90 kOhms	0.6 mm	0.024 in	0.079 in	0.047 in	1.2 mm	2 mm	2-SMD (2x1.2)	2-SMD No Lead
ECS Inc. ECS-.327-CDX-1082-TR9	20 ppm	kHz Crystal (Tuning Fork)	Fundamental	4 pF	Surface Mount	0.032768 MHz	85 °C	-40 C	60 kOhms	0.6 mm	0.024 in	0.079 in	0.047 in	1.2 mm	2 mm	2-SMD (2x1.2)	2-SMD No Lead
ECS Inc. ECS-.327-7-12-C-TR	10 ppm	kHz Crystal (Tuning Fork)	Fundamental	7 pF	Surface Mount	0.032768 MHz	85 °C	-40 C	90 kOhms	0.6 mm	0.024 in	0.079 in	0.047 in	1.2 mm	2 mm	2-SMD (2x1.2)	2-SMD No Lead
