435-90 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Number of Rows [custom]	Shrouding	Contact Shape	Contact Material	Insulation Color	Mounting Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]

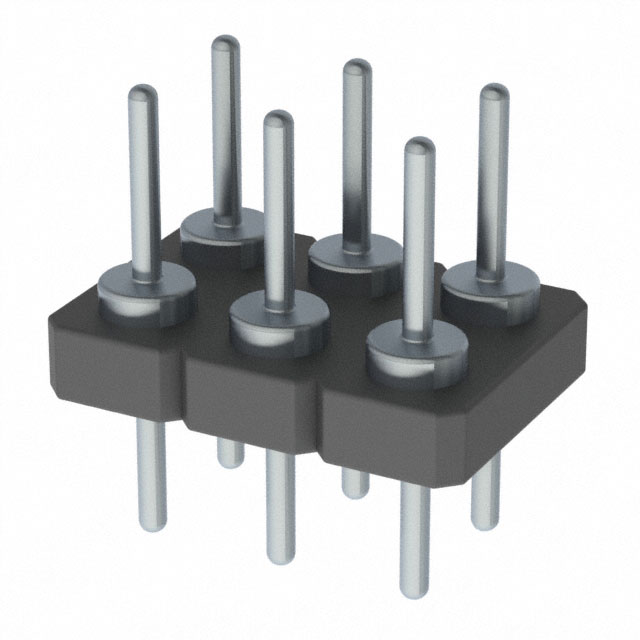

Mill-Max Manufacturing Corp. 435-90-206-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	6	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-260-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	60	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-252-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	52	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-248-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	48	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-224-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	24	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-270-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	70	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm

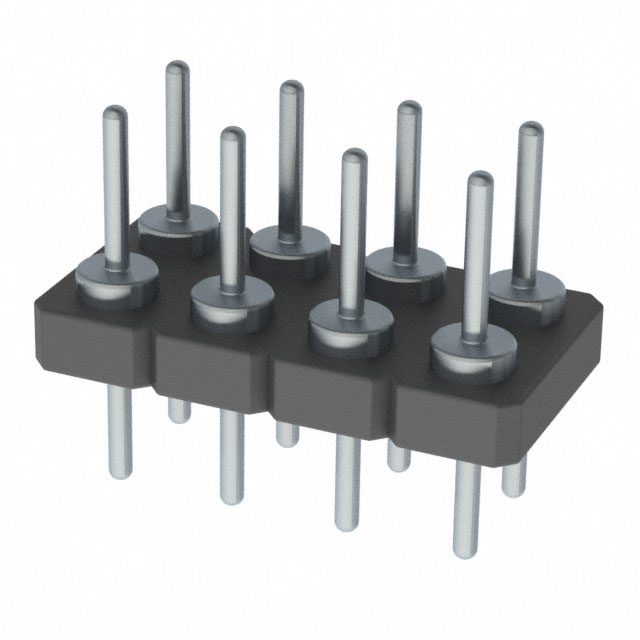

Mill-Max Manufacturing Corp. 435-90-208-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	8	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm

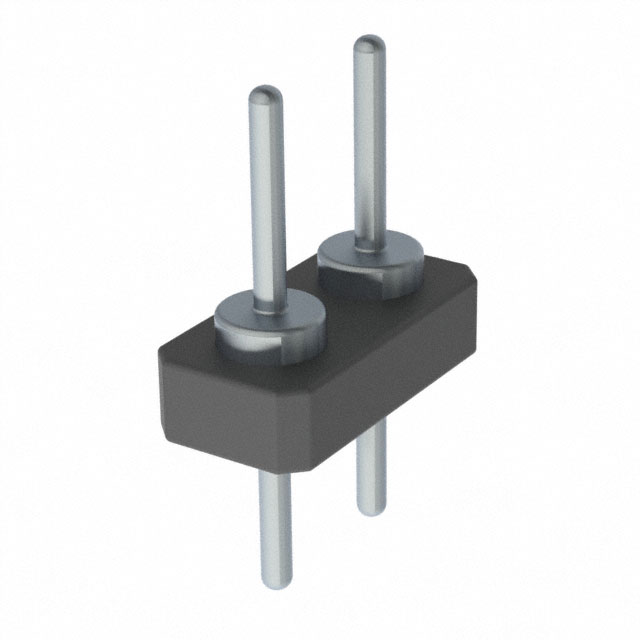

Mill-Max Manufacturing Corp. 435-90-202-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	2	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder			Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-218-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	18	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 435-90-266-00-160000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	66	5.08 µm	200 µin	0.104 in	2.64 mm	Tin-Lead	Solder	0.1 "	2.54 mm	Tin-Lead	1.27 mm	0.05 in	0.299 in 7.6 mm	2	Unshrouded	Circular	Brass Alloy	Black	Through Hole	Male Pin	0.125 in	3.18 mm	All	Header	0.1 in	2.54 mm
