560-005 Series

Manufacturer: EDAC Inc.

Catalog

RCPT HOUSING, 5POS, PBT, WHITE

Part	Note	Contact Termination	Contact Type	Number of Positions	Color	Connector Type	Pitch	Pitch	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Features	Fastening Type	Applications	Number of Positions Loaded	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Material	Contact Shape	Ingress Protection	Style	Insulation Height	Insulation Height	Contact Finish - Post	Current Rating (Amps)	Termination	Material Flammability Rating	Voltage Rating
EDAC Inc. 560-005-000-210	Contacts Not Included	Crimp	Female Socket	5	White	Receptacle	2.5 mm	0.098 in	Free Hanging (In-Line)	-40 C	105 ░C	1	Polybutylene Terephthalate (PBT)	Waterproof	Latch Lock

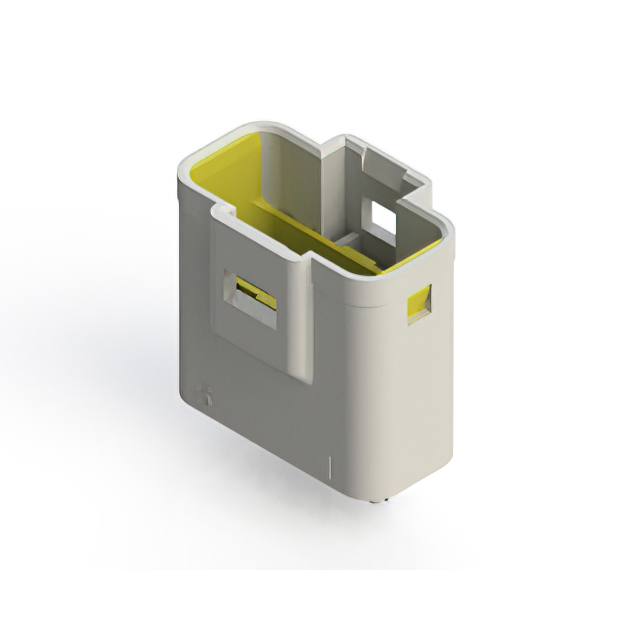

EDAC Inc. 560-005-420-101			Male Pin	5		Header			Through Hole	-40 C	105 ░C	1	Polybutylene Terephthalate (PBT)		Latch Holder	Automotive General Purpose	All	Shrouded - 4 Wall	White	2.5 mm	0.098 in	Brass	Circular	IP67	Board to Cable/Wire	0.61 in	15.49 mm	Tin	3 A	Solder	UL94 V-0	250 V

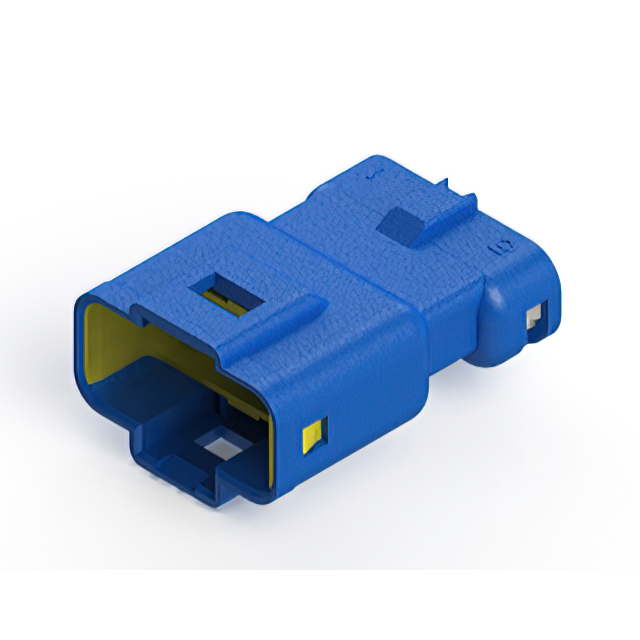

EDAC Inc. 560-005-000-310	Contacts Not Included	Crimp	Male Pin	5	Blue	Plug	2.5 mm	0.098 in	Free Hanging (In-Line)	-40 C	105 ░C	1	Polybutylene Terephthalate (PBT)	Waterproof	Latch Holder

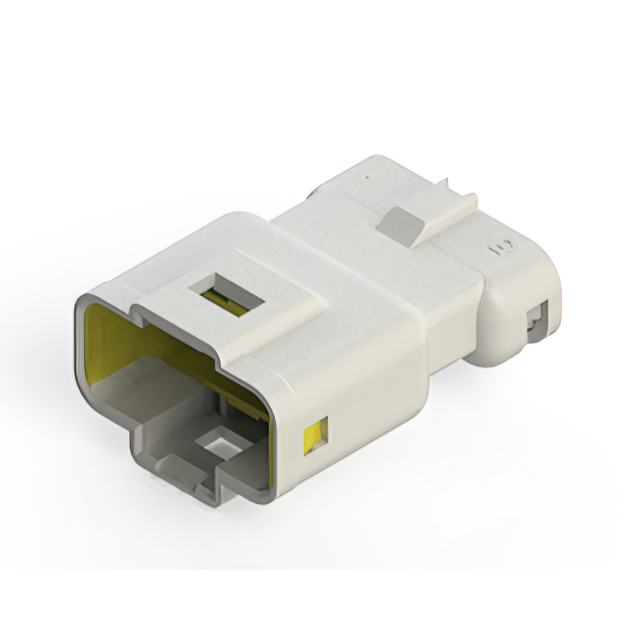

EDAC Inc. 560-005-000-111	Contacts Not Included	Crimp	Male Pin	5	White	Plug	2.5 mm	0.098 in	Free Hanging (In-Line)	-40 C	105 ░C	1	Polybutylene Terephthalate (PBT)	Waterproof	Latch Holder
