PV18 Series

Catalog

FORK / SPADE TONGUE TERMINAL, PV-LF SERIES, 22 AWG, 18 AWG, 1 MM², M3.5, #6

Part	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Insulation	Termination	Contact Finish	Terminal Type	Insulation Diameter	Insulation Diameter	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Stud/Tab Size	Length - Overall	Length - Overall	Material - Insulation	Color	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Stud/Tab Size	Thickness	Thickness

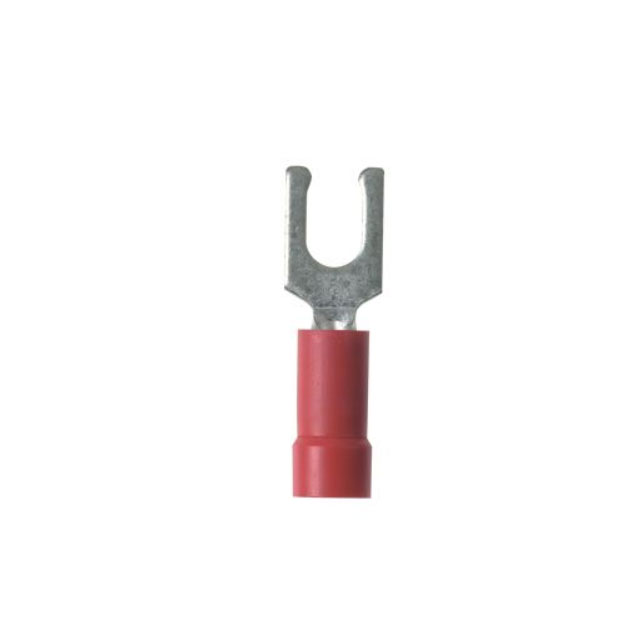

Panduit Corp PV18-6LF-MY	Brazed Seam Serrated Termination	0.27 in	6.86 mm	Copper	Insulated	Crimp	Tin	Snap Spring	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	0.9 in	22.86 mm	Vinyl	Red	3.56 mm	0.14 in

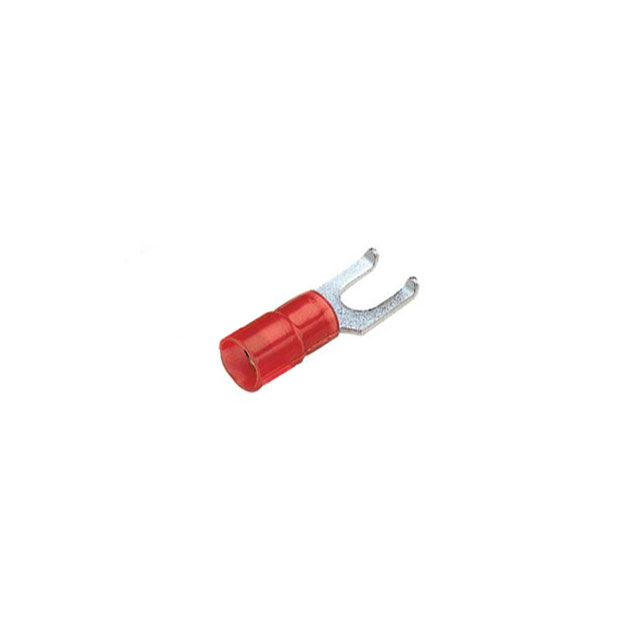

Panduit Corp PV18-10FFB-3K	Butted Seam	0.35 in	8.89 mm	Copper	Insulated	Crimp	Tin	Flanged	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud			Vinyl	Red	5.84 mm	0.23 in	0.86 "	21.84 mm

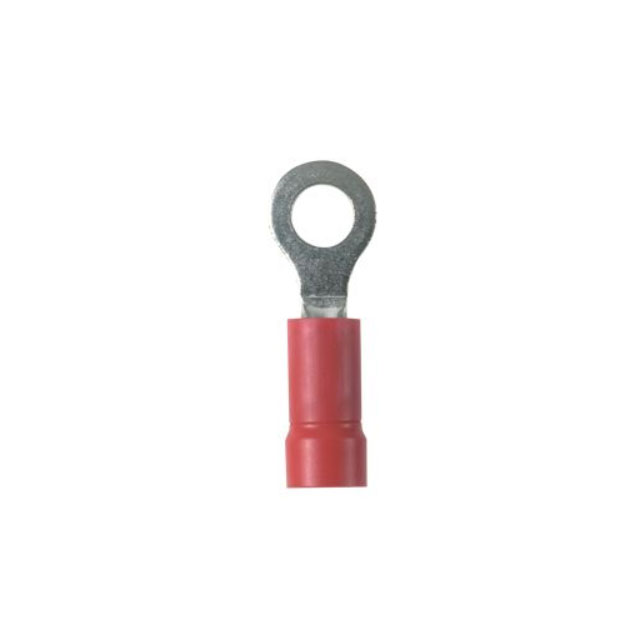

Panduit Corp PV18-38R-LY	Brazed Seam Serrated Termination	0.53 in		Copper	Insulated	Crimp	Tin	Circular	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)		1.19 in	30.23 mm	Vinyl	Red					13.46 mm	3/8 Stud	0.81 mm	0.032 in
Panduit Corp PV18-10RX-CY	Brazed Seam Serrated Termination	0.31 in		Copper	Insulated	Crimp	Tin	Circular			22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud			Vinyl	Red			0.96 "	24.38 mm	7.87 mm		0.76 mm	0.03 in

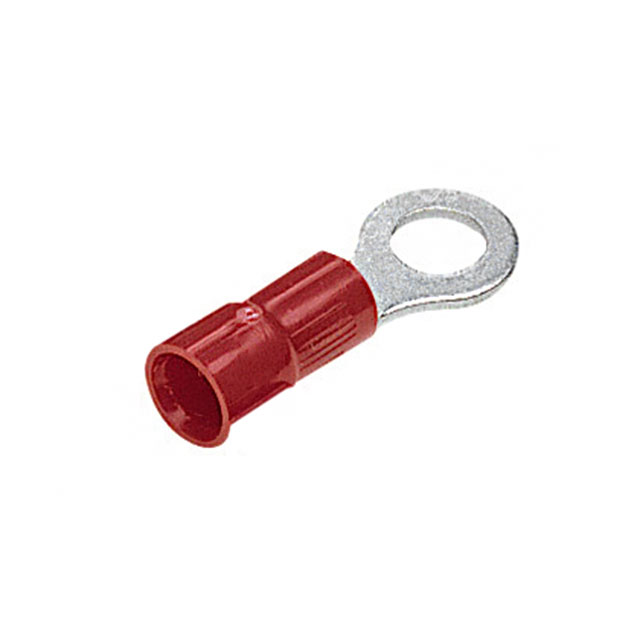

Panduit Corp PV18-56RB-2K		0.46 in		Copper	Insulated	Crimp	Tin	Circular	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	0.3125 Stud			Vinyl	Red			1.06 "	26.92 mm	11.68 mm		0.79 mm	0.031 in

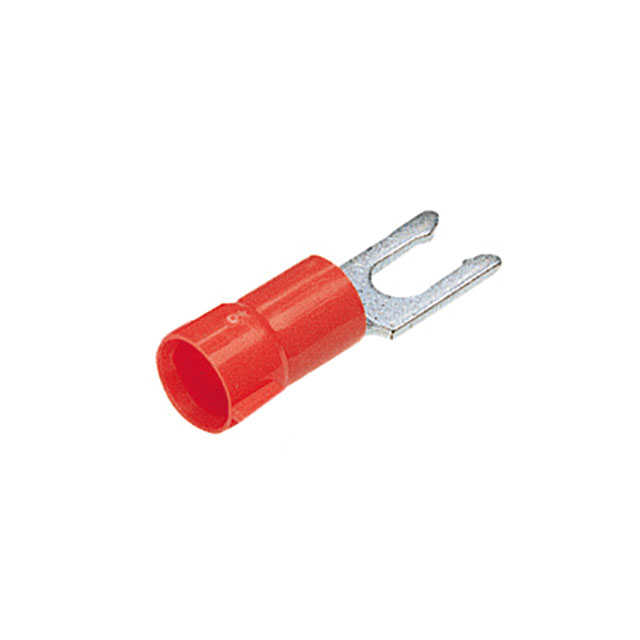

Panduit Corp PV18-6LFB-3K	Butted Seam	0.27 in	6.86 mm	Copper	Insulated	Crimp	Tin	Snap Spring	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud			Vinyl	Red	3.81 mm	0.15 in	0.8 in	20.32 mm
Panduit Corp PV18-38RB-2K		0.53 in		Copper	Insulated	Crimp	Tin	Circular	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)				Vinyl	Red			1.15 in	29.21 mm	13.46 mm	3/8 Stud	0.79 mm	0.031 in

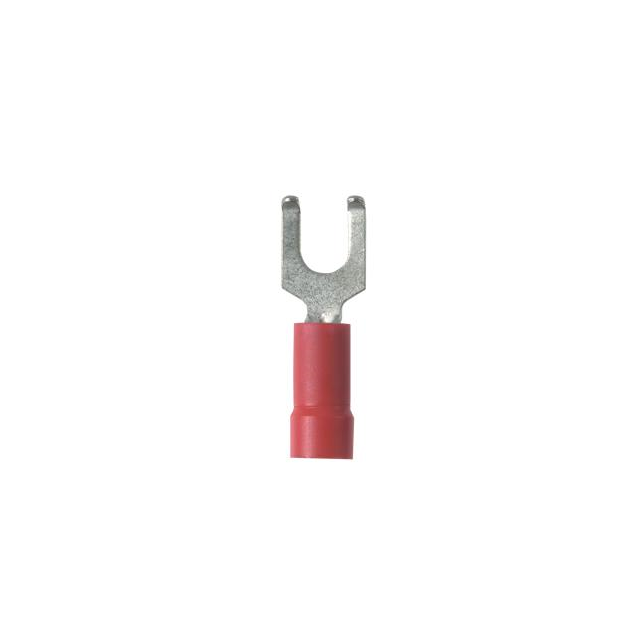

Panduit Corp PV18-6FF-MY	Brazed Seam	0.28 in	7.11 mm	Copper	Insulated	Crimp	Tin	Flanged	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud			Vinyl	Red	4.83 mm	0.19 in	0.87 in	22.1 mm
Panduit Corp PV18-10LF-MY	Brazed Seam Serrated Termination	0.33 in	8.38 mm	Copper	Insulated	Crimp	Tin	Snap Spring	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud			Vinyl	Red	4.83 mm	0.19 in	0.97 in	24.64 mm
Panduit Corp PV18-10F-CY	Brazed Seam	0.35 in	8.89 mm	Copper	Insulated	Crimp	Tin	Standard	3.81 mm	0.15 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	10 Stud		23.62 mm	Vinyl	Red	5.08 mm	0.2 in	0.93 in
