160533 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

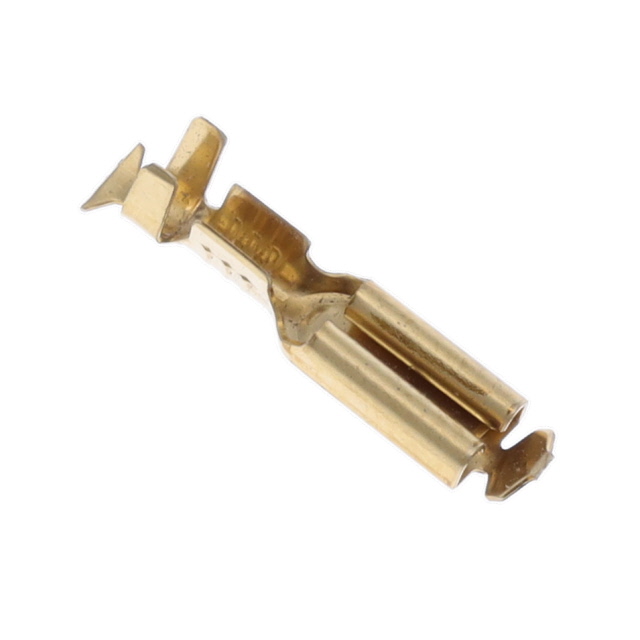

TERMINALS 110 FASTON REC.
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Mounting Type | Gender | Contact Material | Tab Length [x] | Tab Length [x] | Termination | Wire Gauge [custom] | Wire Gauge [custom] | Length - Overall [x] | Length - Overall [x] | Tab Width | Tab Width | Insulation | Terminal Type | Tab Thickness | Tab Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | Free Hanging (In-Line) | Female | Phosphor Bronze | 6.3 mm | 0.248 " | Crimp | 17 | 20 AWG | 0.551 in | 14 mm | 0.11 " | 2.79 mm | Non-Insulated | Standard | 0.02 in | 0.51 mm | |
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | Free Hanging (In-Line) | Female | Phosphor Bronze | 6.3 mm | 0.248 " | Crimp | 17 | 20 AWG | 0.551 in | 14 mm | 0.11 " | 2.79 mm | Non-Insulated | Standard | 0.02 in | 0.51 mm | Tin |
