HTMS-104 Series

Headers & Wire Housings Through-hole Micro Header, 0.050" x 0.100" Pitch

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings Through-hole Micro Header, 0.050" x 0.100" Pitch

Catalog

Headers & Wire Housings Through-hole Micro Header, 0.050" x 0.100" Pitch

...

Part	Contact Shape	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Overall Contact Length	Contact Length - Mating
Samtec Inc. HTMS-107-52-S-D-SM	Square	14	5.21 mm	0.205 in	0.1 in	2.54 mm	Solder	2	0.05 in	1.27 mm	Tin	Unshrouded	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Surface Mount	5 A	Black	2.54 mm	0.1 in	Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin
Samtec Inc. HTMS-110-53-S-D-SM	Square	20	7.24 mm	0.285 in	0.1 in	2.54 mm	Solder	2	0.05 in	1.27 mm	Tin	Unshrouded	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Surface Mount	5 A	Black	2.54 mm	0.1 in	Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin

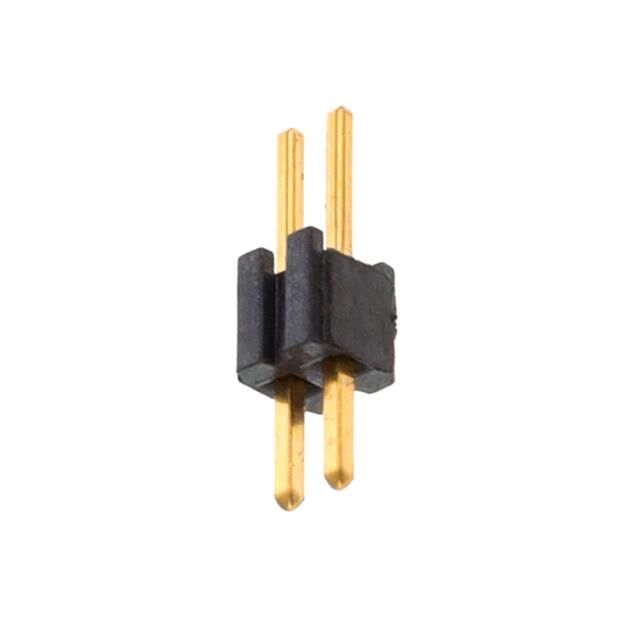

Samtec Inc. HTMS-102-02-G-S	Square	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	1	0.05 in	1.27 mm	Gold	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Through Hole	5 A	Black			Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin	0.12 in	3.05 mm	3 µin	0.076 µm
Samtec Inc. HTMS-110-01-G-D-006
Samtec Inc. HTMS-104-59-L-S	Square	4	13.59 mm	0.535 in	0.1 in	2.54 mm	Solder	1	0.05 in	1.27 mm	Tin	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Through Hole	5 A	Black			Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin	0.12 in	3.05 mm			19.18 mm	0.755 in
Samtec Inc. HTMS-104-02-S-S-SM
Samtec Inc. HTMS-108-01-S-S-RA	Square	8	5.84 mm		0.096 "	2.44 mm	Solder	1	0.05 in	1.27 mm	Tin	Unshrouded	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Through Hole Right Angle	5 A	Black			Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin	0.14 in	3.56 mm					0.23 in
Samtec Inc. HTMS-117-01-G-D-RA	Square	34	5.84 mm				Solder	2	0.05 in	1.27 mm	Gold	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Through Hole Right Angle	5 A	Black	2.54 mm	0.1 in	Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin	0.14 in	3.56 mm	3 µin	0.076 µm			0.23 in
Samtec Inc. HTMS-108-57-L-S	Square	8	0.43 in		0.1 in	2.54 mm	Solder	1	0.05 in	1.27 mm	Tin	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	Through Hole	5 A	Black			Phosphor Bronze	Push-Pull	All	-55 °C	125 °C	Header	Male Pin	0.12 in	3.05 mm			0.65 in			16.51 mm	10.92 mm
Samtec Inc. HTMS-104-02-T-S	Square	4	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	1	0.05 in	1.27 mm	Tin	Unshrouded			Liquid Crystal Polymer (LCP)	UL94 V-0		Through Hole	5 A	Black			Phosphor Bronze	Push-Pull	All	-55 °C	105 ░C	Header	Male Pin	0.12 in	3.05 mm
