QSE133 Series

Plastic Silicon Infrared Photodarlington

Catalog

Plastic Silicon Infrared Photodarlington

Part	Viewing Angle	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Orientation	Package / Case	Power - Max [Max]	Mounting Type
ON Semiconductor QSE133	50 °	30 V	100 nA	100 °C	-40 °C	880 nm	Side View	Radial Side View	100 mW	Through Hole

Plastic Silicon Infrared Photodarlington

• NPN silicon phototransistor

• Package type: Sidelooker

• Medium wide reception angle, 50< °

• Package material and color: black epoxy

• Matched emitter: QEE113

• Daylight filter

• High sensitivity

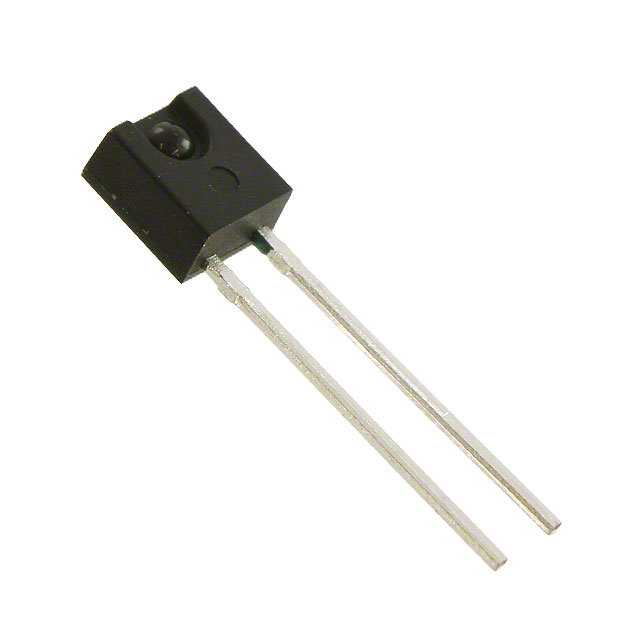

The QSE133 is a silicon photodarlington encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.
