BWR-15 Series

Catalog

DC DC CONVERTER +/-15V 15W

Part	Voltage - Output 2	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Efficiency

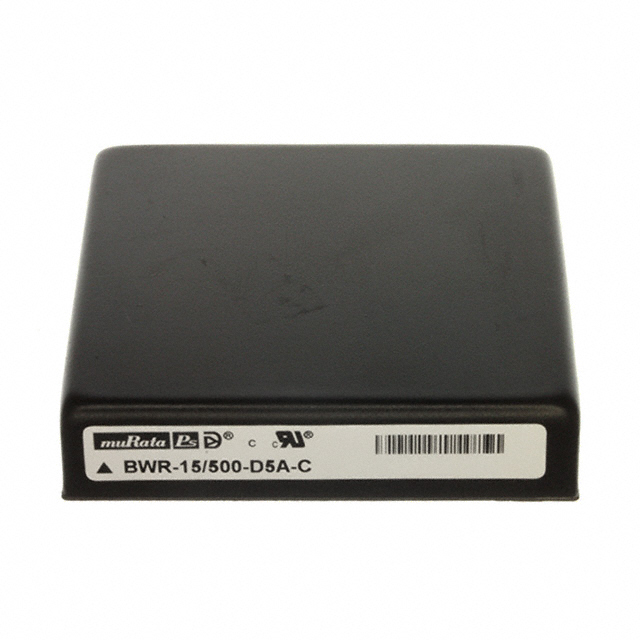

Murata Electronics BWR-15/500-D5A-C	-15 V	8-DIP Module 7 Leads	Through Hole	7.5 V	1000 V	2	Isolated Module	0.45 " 11.4 mm	50.8 mm	50.8 mm	-40 C	100 °C	500 mA	15 V	4.7 V	ITE (Commercial)	15 W
Murata Electronics BWR-15/100-D48-C	-15 V	6-DIP Module	Through Hole	72 V	1.5 kV	2	Isolated Module	11.8 mm	50.8 mm	25.4 mm	-40 C	100 °C		15 V	18 V	ITE (Commercial)	3 W	100 mA	100 mA	0.47 "	1 "	2 in	OCP OVP	80 %
Murata Electronics BWR-15/575-D24A-C	-15 V	6-DIP Module	Through Hole	36 V	1.5 kV	2	Isolated Module	11.8 mm	50.8 mm	25.4 mm	-40 C	100 °C	575 mA	15 V	18 V	ITE (Commercial)	17 W			0.47 "	1 "	2 in	OCP OTP OVP Remote On/Off	84 %
Murata Electronics BWR-15/575-D12A-C	-15 V	6-DIP Module	Through Hole	18 V	1.5 kV	2	Isolated Module	11.8 mm	50.8 mm	25.4 mm	-40 C	100 °C	575 mA	15 V	10 VDC	ITE (Commercial)	17 W			0.47 "	1 "	2 in	OCP OTP OVP Remote On/Off	84 %

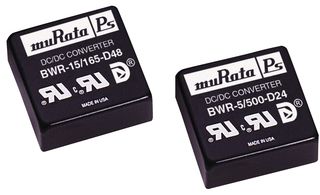

Murata Electronics BWR-15/670-D12A-C	-15 V	8-DIP Module 7 Leads	Through Hole	36 V	1000 V	2	Isolated Module	0.45 " 11.4 mm	50.8 mm	50.8 mm	-40 C	100 °C	670 mA	15 V	9 V	ITE (Commercial)	20 W		670 mA					83 %

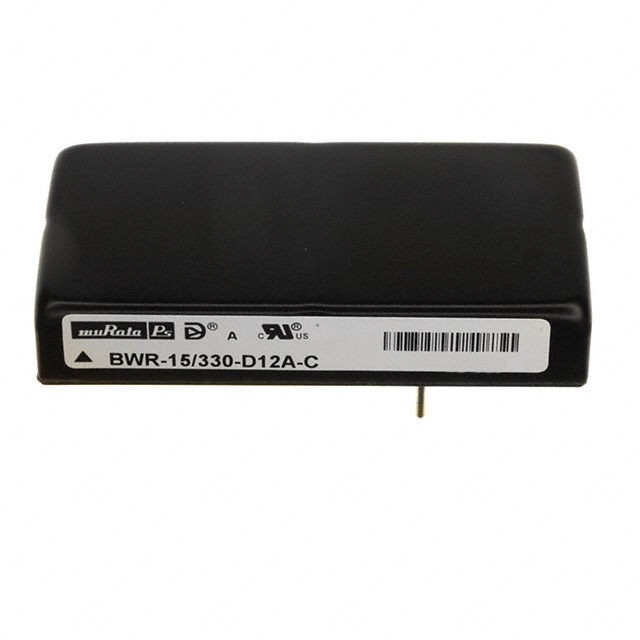

Murata Electronics BWR-15/330-D12A-C	-15 V	5-DIP Module	Through Hole	18 V	1000 V	2	Isolated Module	9.7 mm	50.8 mm	25.4 mm	-40 C	100 °C	330 mA	15 V	9 V	ITE (Commercial)	10 W		330 mA	0.38 in	1 "	2 in		84 %
