BMT1606 Series
Manufacturer: BeStar Technologies, Inc.
Beta
⌘K

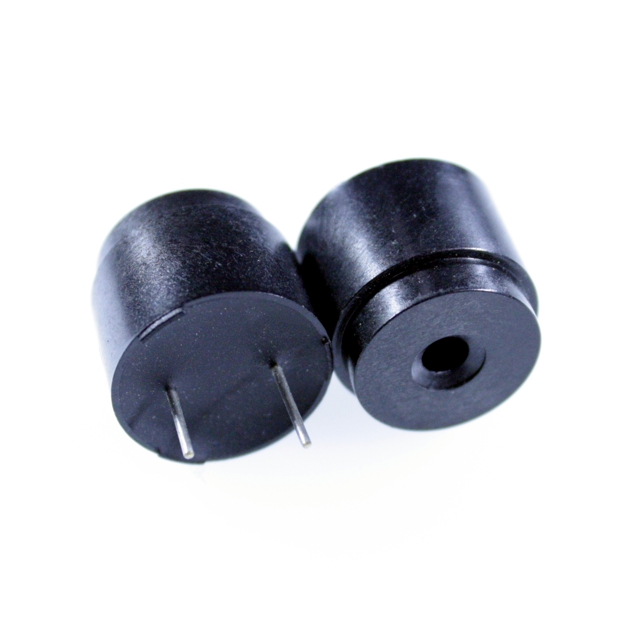

BUZZER MAGNETIC 6V 16MM TH
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Technology | Sound Pressure Level (SPL) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Current - Supply | Voltage Range [Min] | Voltage Range [Max] | Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Termination | Port Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BeStar Technologies, Inc. | 14 mm | 0.551 in | Magnetic | 85 dB | 85 °C | -30 ░C | 6 VDC | 30 mA | 4 VDC | 8 V | 2.3 kHz | 0.63 in | 16 mm | Through Hole | PC Pins | Top |
