R19156 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

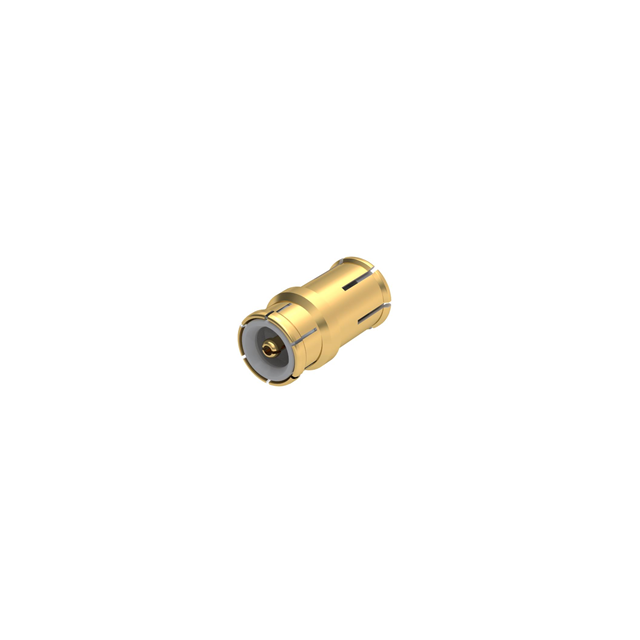

SMP-MAX FEMALE - MMBX MALE STRAI
| Part | Dielectric Material | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Mounting Type | Conversion Type | Frequency - Max [Max] | Adapter Series | Convert To (Adapter End) | Adapter Type | Impedance | Center Contact Plating | Fastening Type | Fastening Type | Convert From (Adapter End) | Style | Features | Adapter Series | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold | 155 C | -55 C | Beryllium Copper | Free Hanging (In-Line) | Between Series | 6000 MHz | SMP to MMBX | MMBX Plug Male Pin | Plug to Jack | 50 Ohms | Gold | Snap-On | Snap-On | Female Socket SMP Jack | Straight | |||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold | 155 C | -55 C | Beryllium Copper | Free Hanging (In-Line) | Between Series | 6000 MHz | SMP to MMBX | MMBX Plug Male Pin | Plug to Jack | 50 Ohms | Gold | Snap-On | Snap-On | Female Socket SMP Jack | Straight | |||

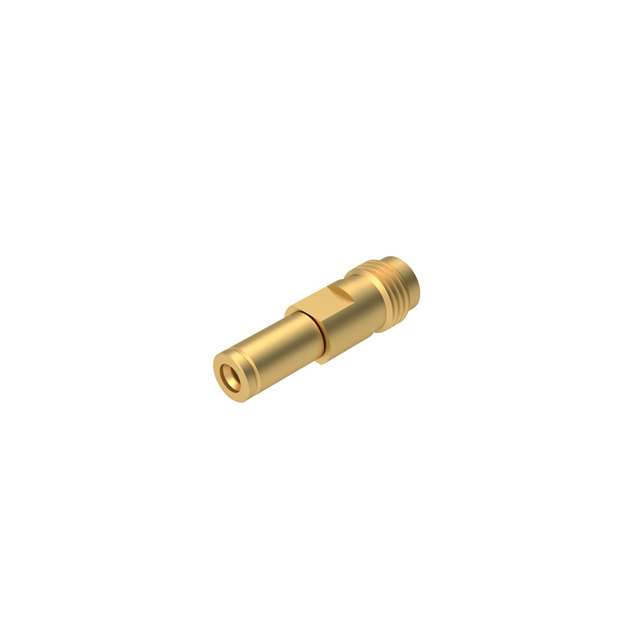

 Radiall USA, Inc. | Polyetheretherketone (PEEK) | Beryllium Copper | Gold | 165 °C | -65 ░C | Beryllium Copper | Free Hanging (In-Line) | Between Series | 40 GHz | SMPM | (APC-2.4 OS-50) Jack Female Socket | Plug to Jack | 50 Ohms | Gold | Snap-On Threaded | SMPM Plug Male Pin | Straight | Full Detent | 2.4 mm | 2.4 mm |
