G12LAC-P Series
Manufacturer: ODU
Beta
⌘K

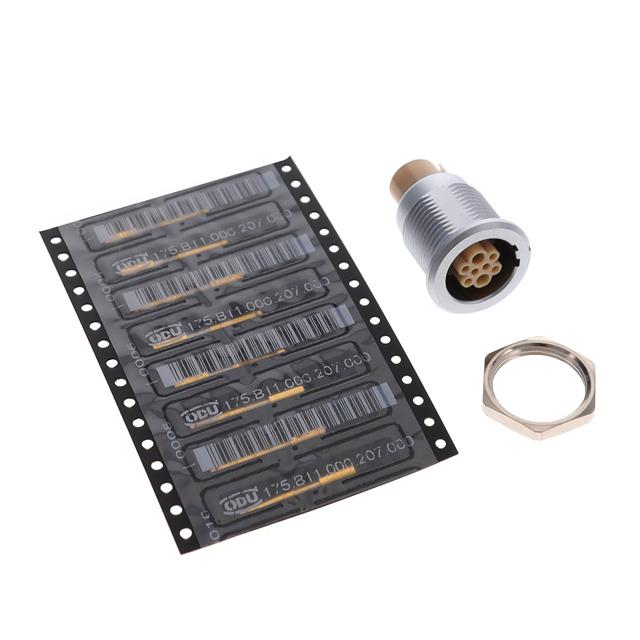

ODU MINI-SNAP RECEPT, STY 1, SZ
| Part | Shell Size - Insert [custom] | Applications | Shell Finish | Shielding | Mounting Feature | Shell Material | Primary Material | Ingress Protection | Fastening Type | Insert Material | Contact Material | Orientation | Voltage Rating | Features | Mounting Type | Connector Type | Current Rating (Amps) | Contact Finish - Mating | Color | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 500 V | Ground | Panel Mount | Receptacle Female Sockets | 12 Amps | Gold | Silver | 6 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 500 V | Ground | Panel Mount | Receptacle Female Sockets | 7.5 A | Gold | Silver | 10 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 366 V | Ground | Panel Mount | Receptacle Female Sockets | 15 A | Gold | Silver | 7 | 120 °C | -40 C | Crimp | |
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 300 VDC | Ground | Panel Mount | Receptacle Female Sockets | 10 A | Gold | Silver | 10 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Shielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 48 VDC | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Panel Mount | Receptacle Female Sockets | 10 A | Gold | Silver | 8 | 120 °C | -40 C | Crimp | |
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 600 V | Ground | Panel Mount | Receptacle Female Sockets | 24 A | Gold | Silver | 2 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 300 VDC | Ground | Panel Mount | Receptacle Female Sockets | 4 A | Gold | Silver | 26 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 300 VDC | Ground | Panel Mount | Receptacle Female Sockets | 6 A | Gold | Silver | 18 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 650 V | Ground | Panel Mount | Receptacle Female Sockets | 12 Amps | Gold | Silver | 4 | 120 °C | -40 C | ||
2 | Industrial Medical Military Testing Equipment & Measurement | Chrome over Nickel | Unshielded | Bulkhead - Rear Side Nut | Brass | Metal | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Brass | A | 366 V | Ground | Panel Mount | Receptacle Female Sockets | 15 A | Gold | Silver | 6 | 120 °C | -40 C | Crimp |
