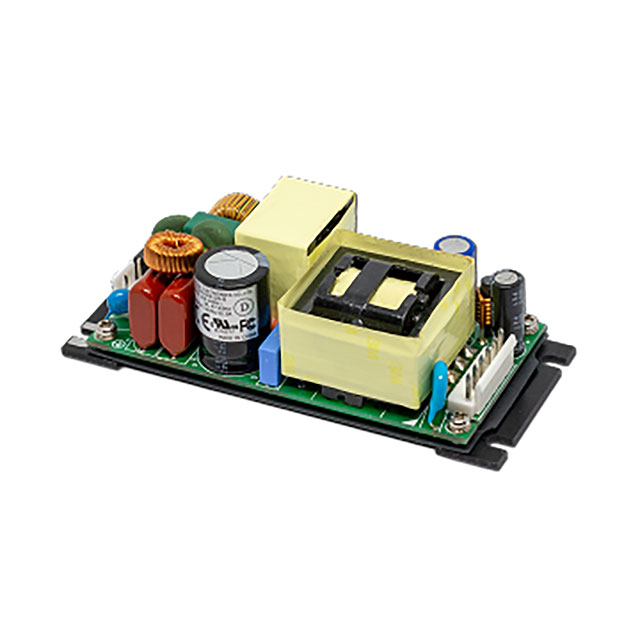

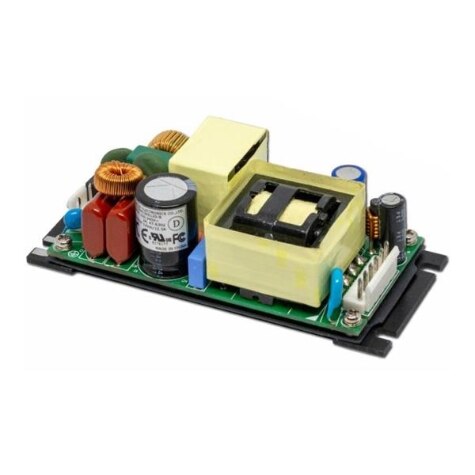

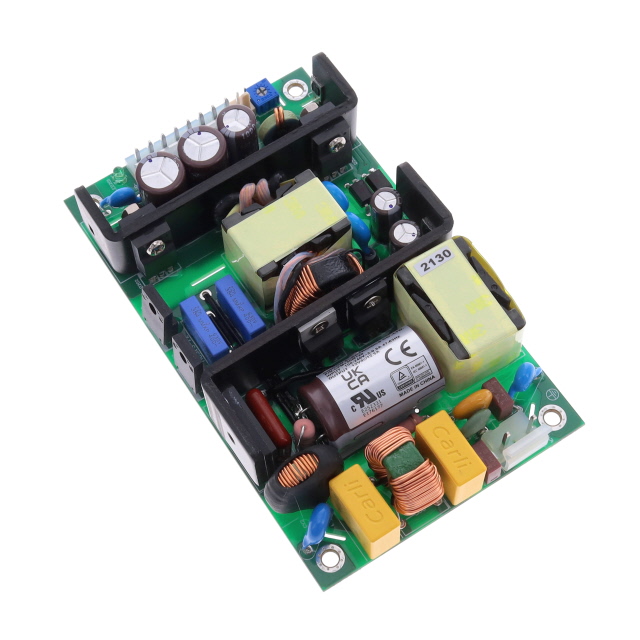

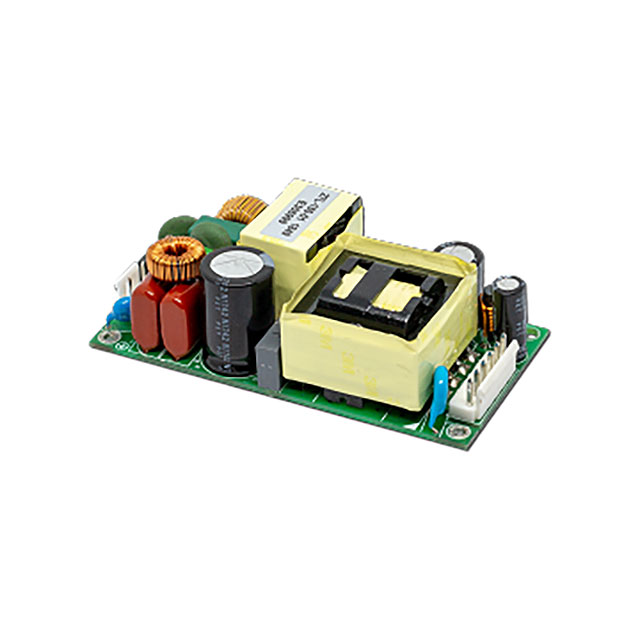

CFM150 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 24V 120W
| Part | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Applications | Approval Agency | Minimum Load Required | Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Efficiency | Voltage - Isolation | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 24 V | 34.6 mm | 50.8 mm | 116.8 mm | 1.36 " | 4.6 " | 2 in | Adjustable Output Baseplate Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 5 A | 94 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 28 V | 34.6 mm | 50.8 mm | 116.8 mm | 1.36 " | 4.6 " | 2 in | Adjustable Output Baseplate Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 4.28 A | 94 % | 3000 V | 1 | ||
 Cincon Electronics Co. LTD | 48 V | 26.7 mm | 76.2 mm | 127 mm | 1.05 " | 5 in | 3 " | Adjustable Output PFC Remote Sense Universal Input | 90 VAC | 264 VAC | Chassis Mount | ITE (Commercial) Medical | CE cURus FCC TUV | Open Frame | -20 °C | 70 °C | 3.13 A | 93 % | 5.656 kV | 1 | 150 W | |
 Cincon Electronics Co. LTD | 28 V | 28 mm | 50.8 mm | 101.6 mm | 1.1 in | 4 in | 2 in | Adjustable Output Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 4.28 A | 94 % | 3000 V | 1 | ||
 Cincon Electronics Co. LTD | 36 V | 34.6 mm | 50.8 mm | 116.8 mm | 1.36 " | 4.6 " | 2 in | Adjustable Output Baseplate Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 3.33 A | 94 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 12 V | 34.6 mm | 50.8 mm | 116.8 mm | 1.36 " | 4.6 " | 2 in | Adjustable Output Baseplate Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 10 A | 93 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 48 V | 28 mm | 50.8 mm | 101.6 mm | 1.1 in | 4 in | 2 in | Adjustable Output Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 2.5 A | 94 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 48 V | 34.6 mm | 50.8 mm | 116.8 mm | 1.36 " | 4.6 " | 2 in | Adjustable Output Baseplate Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 2.5 A | 94 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 36 V | 28 mm | 50.8 mm | 101.6 mm | 1.1 in | 4 in | 2 in | Adjustable Output Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 3.33 A | 94 % | 3000 V | 1 | ||
Cincon Electronics Co. LTD | 12 V | 28 mm | 50.8 mm | 101.6 mm | 1.1 in | 4 in | 2 in | Adjustable Output Universal Input | 90 VAC | 264 VAC | Chassis Mount | Household Appliances ITE (Commercial) | CE cURus DEMKO FCC | Open Frame | -30 °C | 80 ¯C | 10 A | 93 % | 3000 V | 1 |
