PFB0624 Series

Catalog

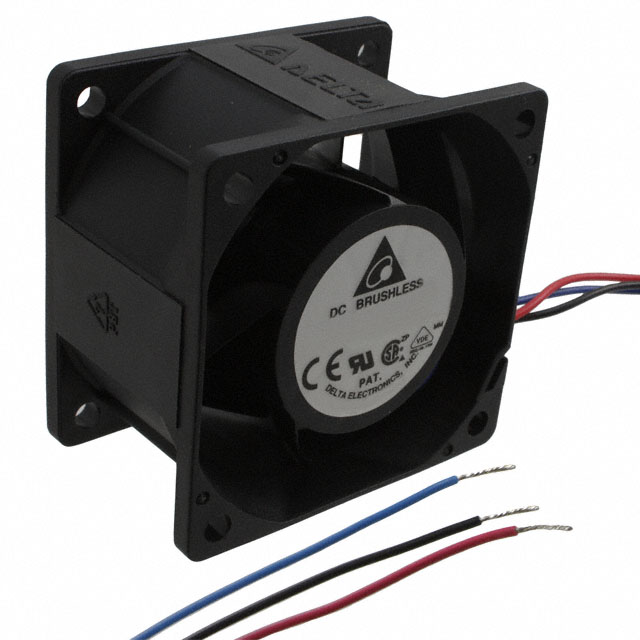

FAN AXIAL 60X38MM 24VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Air Flow	Air Flow	Static Pressure	Static Pressure	Approval Agency	Noise	Voltage - Rated	Weight	Weight	RPM	Fan Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Termination	Features	Static Pressure	Ingress Protection
Delta Electronics PFB0624SHE	0.28 A	70000 Hrs	Plastic	Plastic	14 VDC	26.4 VDC	Ball	-10 °C	60 °C	38 mm	1.22 m³/min	43.6 CFM	228.7 Pa	0.918 in H2O	CE CSA UL VDE	50.5 dB(A)	24 VDC	130.18 g	0.287 lb	8000 RPM	Tubeaxial	6.72 W	60 mm	60 mm	2 Wire Leads
Delta Electronics PFB0624EHE-F00	360 mA	70000 Hrs	Plastic	Plastic	14 VDC	26.4 VDC	Ball	-10 °C	60 °C	38 mm	1.41 mł/min	50.4 CFM	299.7 Pa	1.203 in H2O	CE CSA UL VDE	54 dB	24 VDC	130.18 g	0.287 lb	9000 RPM	Tubeaxial	8.64 W	60 mm	60 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0624GHE-TD88	430 mA	40 °C 50000 Hrs	Plastic	Plastic	14 VDC	26.4 VDC	Ball	-10 °C	60 °C	38 mm	1.56 mł/min	55.6 CFM	1.444 in H2O		CE CSA UL VDE	57.5 dB	24 VDC	130.18 g	0.287 lb	10000 RPM	Tubeaxial	10.32 W	60 mm	60 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	359.7 Pa	IP55 - Dust Protected Water Resistant
