MB358 Series

Catalog

INTERFACE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Supplier Device Package	Technology	Voltage - Peak Reverse (Max) [Max]
Micro Commercial Components MB358-BP	-55 °C	125 °C	Single Phase	QC Terminal	4-Square MB-35	1.1 V	35 A	10 µA	MB-35	Standard	800 V

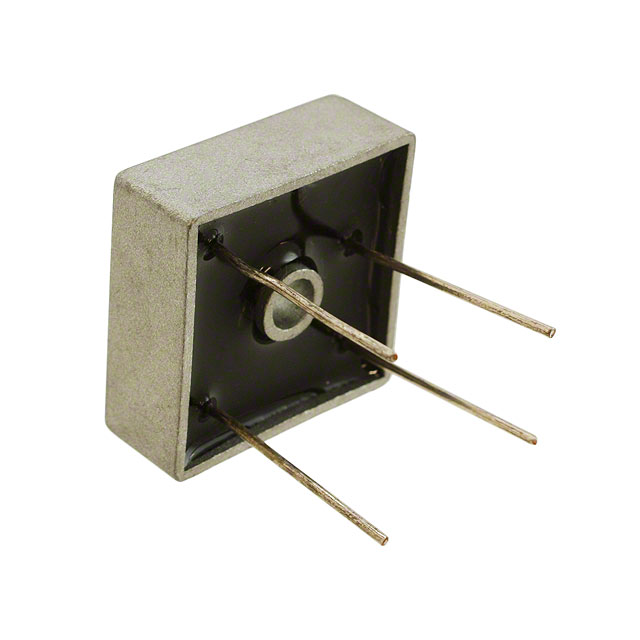

Micro Commercial Components MB358W-BP	-55 °C	150 °C	Single Phase	Through Hole	4-Square MB-35W	1.2 V	35 A	10 µA	MB-35W	Standard	800 V
