79215 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

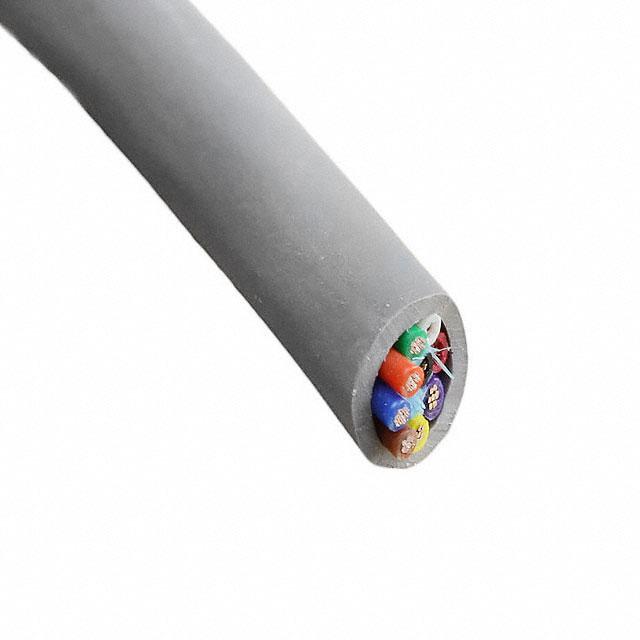

CABLE 9COND 18AWG SHLD
| Part | Shield Material | Shield Coverage | Wire Gauge | Number of Conductors | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Conductor Insulation | Jacket Color | Ratings | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 18 AWG | 9 | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 0.378 in | 9.6 mm | Copper Tinned | 16 | 30 AWG | 600 V | 0.035 in | 0.889 mm | Biological Compatibility | -40 C | 105 ░C | Braid Foil | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 18 AWG | 9 | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 0.378 in | 9.6 mm | Copper Tinned | 16 | 30 AWG | 600 V | 0.035 in | 0.889 mm | Biological Compatibility | -40 C | 105 ░C | Braid Foil | Polyphenylene Ether Modified (mPPE) | Slate | ISO 10993 | 100 ft | 30.5 m |
