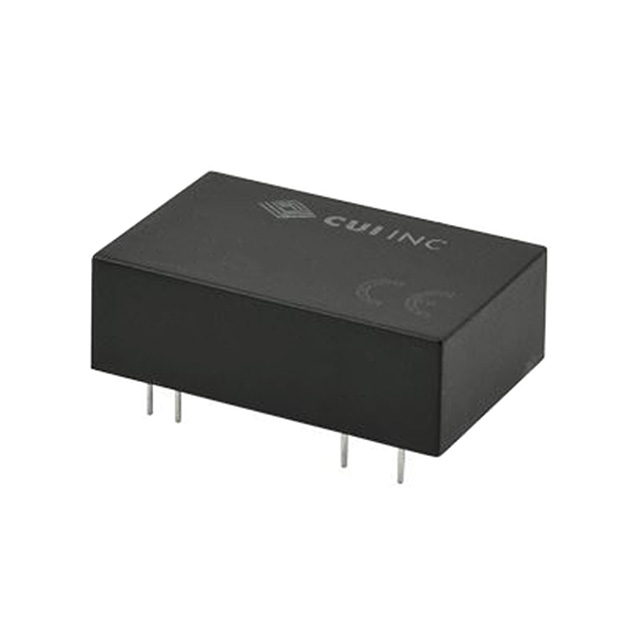

VAQE6W Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 5W
| Part | Mounting Type | Approval Agency | Number of Outputs | Voltage - Isolation | Power (Watts) | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Input (Min) [Min] | Features | Voltage - Output 1 | Type | Voltage - Input (Max) [Max] | Applications | Standard Number | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Min] | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 5 W | 1.5 A | -40 °C | 85 °C | 24-DIP Module 7 Leads | 18 V | OCP OVP SCP UVLO | 3.3 V | Isolated Module | 75 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 79 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 1.2 A | -40 °C | 85 °C | 24-DIP Module 7 Leads | 18 V | OCP OVP SCP UVLO | 5 V | Isolated Module | 75 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 83 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 2 | 3000 V | 6 W | 600 mA | -40 °C | 85 °C | 24-DIP Module 8 Leads | 9 V | OCP OVP SCP UVLO | 5 V | Isolated Module | 36 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 80 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | 600 mA | -5 V |
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 400 mA | -40 °C | 85 °C | 24-DIP Module 7 Leads | 9 V | OCP OVP SCP UVLO | 15 V | Isolated Module | 36 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 88 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 500 mA | -40 °C | 85 °C | 24-DIP Module 7 Leads | 18 V | OCP OVP SCP UVLO | 12 V | Isolated Module | 75 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 87 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 667 mA | -40 °C | 85 °C | 24-DIP Module 7 Leads | 9 V | OCP OVP SCP UVLO | 9 V | Isolated Module | 36 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 85 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 2 | 3000 V | 6 W | -40 °C | 85 °C | 24-DIP Module 8 Leads | 9 V | OCP OVP SCP UVLO | 15 V | Isolated Module | 36 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 85 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | -15 V | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 400 mA | -40 °C | 85 °C | 24-DIP Module 7 Leads | 18 V | OCP OVP SCP UVLO | 15 V | Isolated Module | 75 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 88 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | ||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 1.2 A | -40 °C | 85 °C | 24-DIP Module 7 Leads | 9 V | OCP OVP SCP UVLO | 5 V | Isolated Module | 36 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm | |||
CUI Inc. | Through Hole | CB Scheme EN IEC UL | 1 | 3000 V | 6 W | 250 mA | -40 °C | 85 °C | 24-DIP Module 7 Leads | 18 V | OCP OVP SCP UVLO | 24 V | Isolated Module | 75 V | ITE (Commercial) | 55024 55032 Class A 60950-1 | 87 % | 10.2 mm | 1.24 in | 0.4 " | 0.8 " | 20.3 mm | 31.6 mm |
