FGP.2M Series
Manufacturer: LEMO
Beta
⌘K

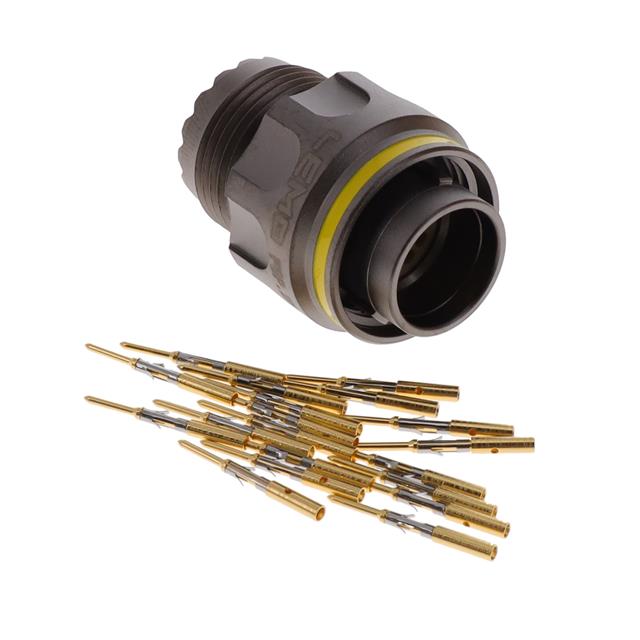

CONN PLUG MALE 19POS GOLD CRIMP
| Part | Ingress Protection | Applications | Features | Current Rating (Amps) | Color | Fastening Type | Number of Positions | Shell Size - Insert | Primary Material | Orientation | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Shell Material | Contact Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Shell Finish | Contact Finish - Mating | Insert Material | Shielding | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | Coupling Nut | 4 A | Gray | Threaded | 19 | 319 | Metal | P | Plug Male Pins | 200 °C | -55 C | Crimp | Free Hanging (In-Line) | Aluminum Alloy | Brass | 39.4 µin | 1 µm | Nickel | Gold | Polyetheretherketone (PEEK) | Shielded | ||
LEMO | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | Coupling Nut | 4 A | Gray | Threaded | 19 | 319 | Metal | P | Plug Male Pins | 200 °C | -55 C | Crimp | Free Hanging (In-Line) | Aluminum Alloy | Brass | 39.4 µin | 1 µm | Nickel | Gold | Polyetheretherketone (PEEK) | Shielded | 13 mm | 0.512 in |
LEMO | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | Coupling Nut | 7 A | Gray | Threaded | 12 | 312 | Metal | P | Plug Male Pins | 200 °C | -55 C | Crimp | Free Hanging (In-Line) | Aluminum Alloy | Brass | 39.4 µin | 1 µm | Nickel | Gold | Polyetheretherketone (PEEK) | Shielded | 13 mm | 0.512 in |
