SM2A312 Series

Catalog

PHOTOELECTRIC SENSOR, AC-VOLTAGE SERIES, MINI-BEAM, DIFFUSE, 380MM, SCR, 24-240VAC

Part	Ingress Protection	Sensing Method	Response Time	Output Configuration	Sensing Distance	Sensing Distance	Connection Method	Cable Length	Cable Length	Ingress Protection	Adjustment Type	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]

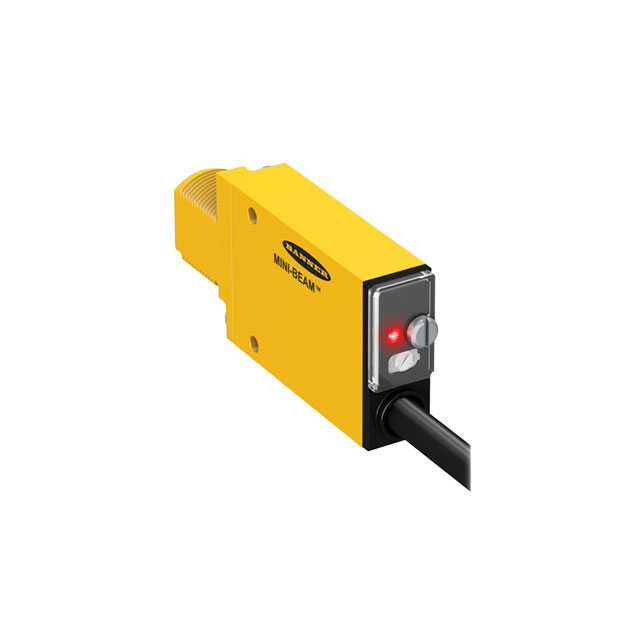

BANNER ENGINEERING SM2A312D	3S 4X IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	Diffuse	8 ms	Light-On/Dark-On	380 mm	14.961 in	Cable	78.74 "	2 m	2 3 4 12 13	Adjustable Potentiometer	Red LED	24 VAC	240 VAC	-20 ░C	70 °C
BANNER ENGINEERING SM2A312LV	3S 4X IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	Polarized Retroreflective	4 ms	Light-On/Dark-On	2 m	78.74 in	Connector			2 3 4 12 13	Adjustable Potentiometer	Red LED	24 VAC	240 VAC	-20 ░C	70 °C

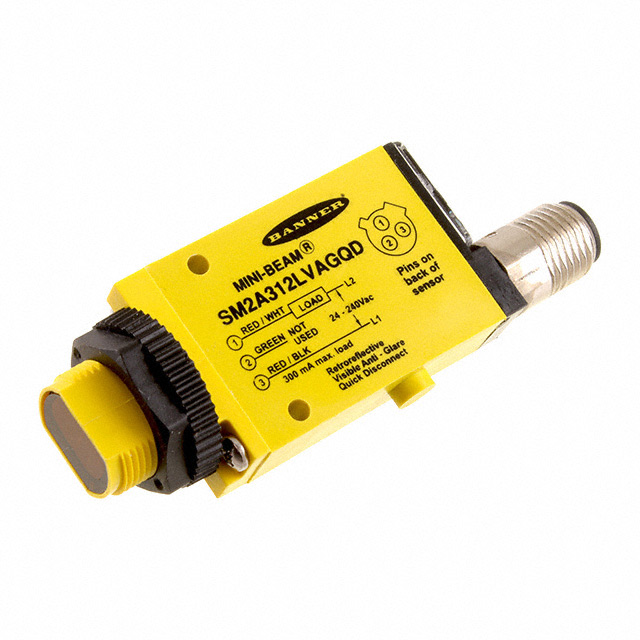

BANNER ENGINEERING SM2A312LVAGQD	3S 4X IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	Polarized Retroreflective	4 ms	Light-On/Dark-On	2 m	78.74 in	Connector			2 3 4 12 13	Adjustable Potentiometer	Red LED	24 VAC	240 VAC	-20 ░C	70 °C

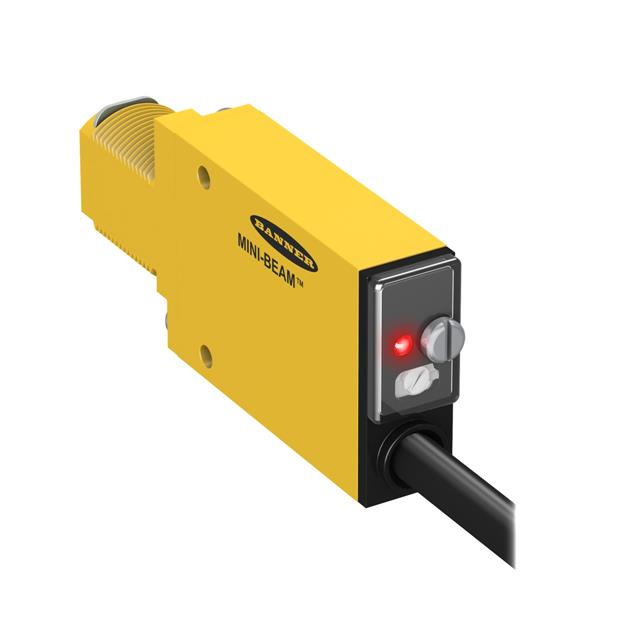

BANNER ENGINEERING SM2A312FVG	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Fiber Optic	8 ms				Cable	78.74 "	2 m		Adjustable Potentiometer	RED (650nm)	24 VAC	240 VAC	-20 ░C	70 °C
BANNER ENGINEERING SM2A312DQD	3S 4X IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	Diffuse	8 ms	Light-On/Dark-On	380 mm	14.961 in	Connector			2 3 4 12 13	Adjustable Potentiometer	Red LED	24 VAC	240 VAC	-20 ░C	70 °C

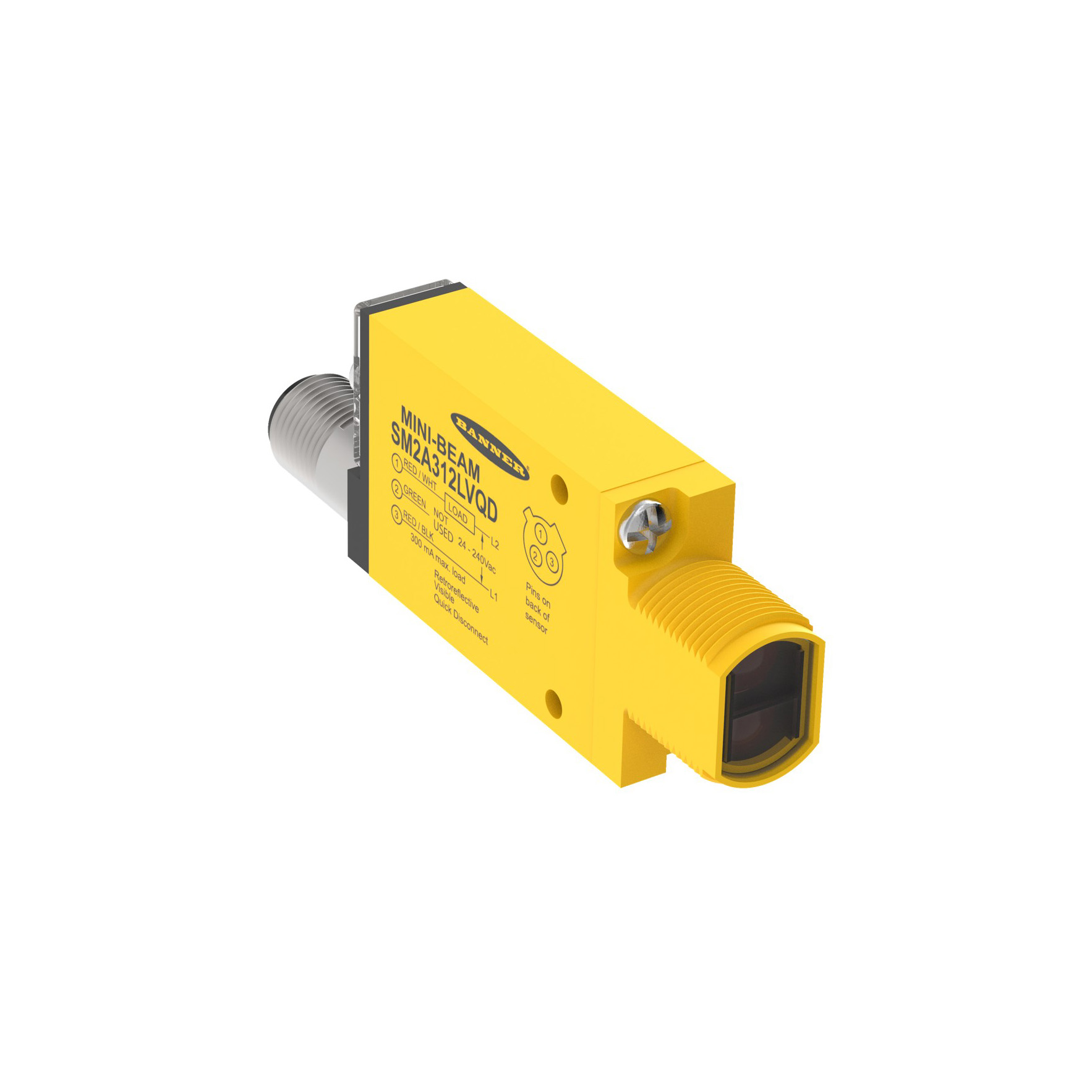

BANNER ENGINEERING SM2A312LVQD	3S 4X IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	Retroreflective NonPolarized	4 ms	Light-On/Dark-On	5 m 196.85 in		Connector			2 3 4 12 13	Adjustable Potentiometer	Red LED	24 VAC	240 VAC	-20 ░C	70 °C
