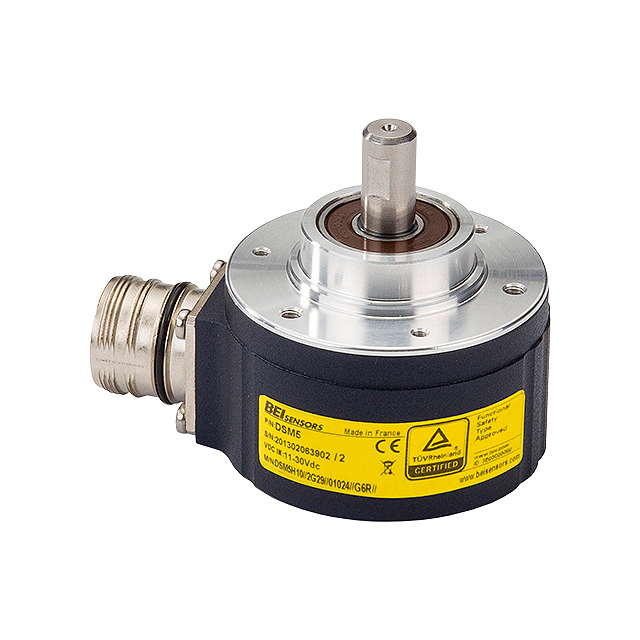

DSM5H06 Series

Catalog

ENCODER INCREMENTAL VOLTAGE CONN

Part	Rotational Life (Cycles Min)	Voltage - Supply [Max]	Voltage - Supply [Min]	Pulses per Revolution	Termination Style	Actuator Type	Mounting Type	Encoder Type	Orientation	Output Type
Sensata-BEI Encoders DSM506-2048S004	29.7B	30 VDC	11 VDC	2048	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-1024S008	29.7B	30 VDC	11 VDC	1024	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-2048S007	29.7B	30 VDC	11 VDC	2048	PC Pin	Hole for Shaft	Servo Mount	Incremental	Vertical	Voltage
Sensata-BEI Encoders DSM506-1024S014	29.7B	30 VDC	11 VDC	1024	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-2048S010	29.7B	30 VDC	11 VDC	2048	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-0250S004	29.7B	30 VDC	11 VDC	2048	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-1024S012	29.7B	30 VDC	11 VDC	1024	PC Pin	Hole for Shaft	Servo Mount	Incremental	Vertical	Voltage
Sensata-BEI Encoders DSM506-1024S012	29.7B	30 VDC	11 VDC	1024	PC Pin	Hole for Shaft	Servo Mount	Incremental	Vertical	Voltage
Sensata-BEI Encoders DSM506-1024S011	29.7B	30 VDC	11 VDC	1024	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
Sensata-BEI Encoders DSM506-1024S011	29.7B	30 VDC	11 VDC	1024	Connector	Shaft	Servo Mount	Incremental	User Selectable	Voltage
