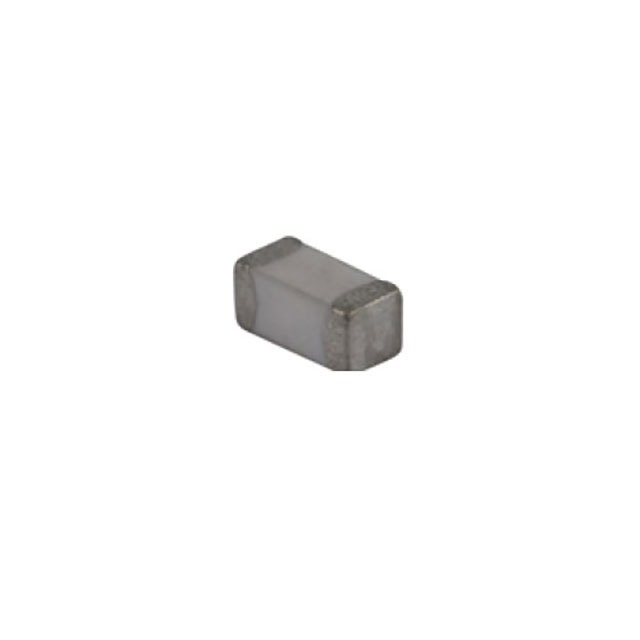

MCLA Series

RF Inductors - SMD 2.4 NH +0.3NH AEC-Q200

Manufacturer: Eaton - Electronics Division

Catalog

RF Inductors - SMD 2.4 NH +0.3NH AEC-Q200

Catalog

RF Inductors - SMD 2.4 NH +0.3NH AEC-Q200

...

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Inductance	Current Rating (Amps)	Mounting Type	Ratings	Frequency - Self Resonant	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	DC Resistance (DCR)	Inductance Frequency - Test	Shielding	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [y]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Eaton - Electronics Division MCLA2012V1-100-R	Multilayer	125 °C	-40 C	10 %	0805	10 µH	0.015 A	Surface Mount	AEC-Q200	24 MHz	30	0.043 "	1.1 mm	0.079 in	0.047 in	1.2 mm	2 mm	0805	1.15 Ohm	2 MHz	Unshielded
Eaton - Electronics Division MCLA1608V2-271-R	Multilayer	125 °C	-40 C	5 %	0603	270 nH	150 mA	Surface Mount	AEC-Q200	350 MHz	8 50 MHz	1 mm		0.063 "	0.031 in		1.6 mm			50 MHz	Unshielded	2.6 Ohm	0.039 in	1608 Metric	0.8 mm
Eaton - Electronics Division MCLA1608V1-R150-R	Multilayer	125 °C	-40 C	10 %	0603	150 nH	50 mA	Surface Mount	AEC-Q200	180 MHz	20 25 MHz	1 mm		0.063 "	0.031 in		1.6 mm			25 MHz	Unshielded	300 mOhm	0.039 in	1608 Metric	0.8 mm
Eaton - Electronics Division MCLA3216V1-R180-R	Multilayer	125 °C	-40 C	10 %	1206 (3216 Metric)	180 nH	0.25 A	Surface Mount	AEC-Q200	185 MHz		0.043 "	1.1 mm	0.126 "	0.063 "	1.6 mm	3.2 mm	1206		25 MHz	Unshielded	300 mOhm				25 MHz	25
Eaton - Electronics Division MCLA1005V2-3R3-R	Multilayer	125 °C	-40 C	0.3 nH	0402 (1005 Metric)	3.3 nH	0.3 A	Surface Mount	AEC-Q200	6 GHz		0.65 mm		0.039 "	0.02 in	0.5 mm	1 mm	0402	200 mOhm	100 MHz	Unshielded		0.026 in			100 MHz	8
Eaton - Electronics Division MCLA2012V1-2R2-R	Multilayer	125 °C	-40 C	10 %	0805	2.2 µH	50 mA	Surface Mount	AEC-Q200	50 MHz	10 MHz 35	0.043 "	1.1 mm	0.079 in	0.047 in	1.2 mm	2 mm	0805		10 MHz	Unshielded
Eaton - Electronics Division MCLA2012V1-R082-R	Multilayer	125 °C	-40 C	10 %	0805	82 nH	0.3 A	Surface Mount	AEC-Q200	280 MHz	25 50 MHz	0.043 "	1.1 mm	0.079 in	0.047 in	1.2 mm	2 mm	0805	200 mOhm	50 MHz	Unshielded
Eaton - Electronics Division MCLA3216V1-3R3-R	Multilayer	125 °C	-40 C	10 %	1206 (3216 Metric)	3.3 µH	50 mA	Surface Mount	AEC-Q200	41 MHz	10 MHz 35	0.043 "	1.1 mm	0.126 "	0.063 "	1.6 mm	3.2 mm	1206		10 MHz	Unshielded	500 mOhm
Eaton - Electronics Division MCLA1608V1-R820-R	Multilayer	125 °C	-40 C	10 %	0603	820 nH	50 mA	Surface Mount	AEC-Q200	85 MHz	20 25 MHz	1 mm		0.063 "	0.031 in		1.6 mm			25 MHz	Unshielded	1 Ohm	0.039 in	1608 Metric	0.8 mm
Eaton - Electronics Division MCLA3216V1-5R6-R	Multilayer	125 °C	-40 C	10 %	1206 (3216 Metric)	5.6 µH	25 mA	Surface Mount	AEC-Q200	32 MHz		0.043 "	1.1 mm	0.126 "	0.063 "	1.6 mm	3.2 mm	1206		4 MHz	Unshielded	800 mOhm					35	4 MHz
