CFM1001 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

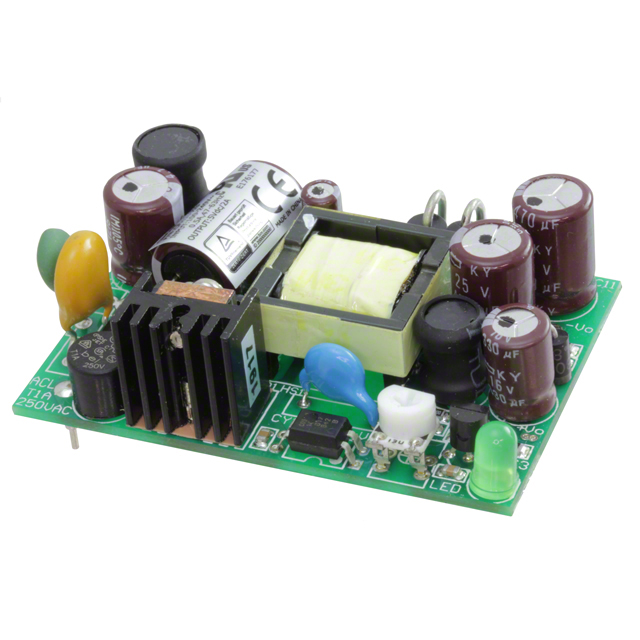

AC/DC POWER SUPPLY SINGLE-OUT 5V 2A 10W 4-PIN BOX
| Part | Line Regulation | Load Regulation | Standard Number | Type | Number of Outputs | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Voltage - Output 1 | Approval Agency | Current - Output (Max) [Max] | Package / Case | Mounting Type | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 0.5 % | ±1% | 60950-1 | Open Frame | 1 | ITE (Commercial) | 70 °C | 0 °C | 45 mm | 1.77 in | 0.91 in | 65 mm | 23 mm | 2.6 in | 73 % | 5 V | CE cURus TUV | 2 A | Module | Through Hole | Universal Input | 10 W |
