Shielded Multi-Con-X Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CIRCULAR CONNECTOR, MULTI-CON-X SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS, PCB SOCKET, THREADED
| Part | Ingress Protection | Number of Positions | Fastening Type | Mounting Feature | Orientation | Insert Material | Current Rating (Amps) | Termination | Mounting Type | Contact Finish - Mating | Color | Shell Finish | Shell Material | Connector Type | Contact Material | Features | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

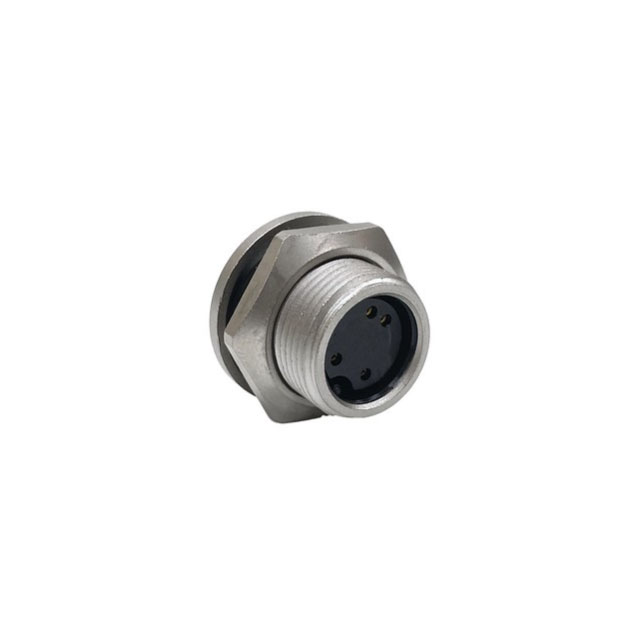

 SWITCHCRAFT/CONXALL | IP66 IP68 | 4 | Threaded | Bulkhead - Front Side Nut | Keyed | Thermoplastic | 5.6 A | Solder | Panel Mount Through Hole | Gold | Silver | Nickel | Copper Alloy | Receptacle Female Sockets | Copper Alloy | Cap (Cover) Ground | Metal | 0.76 Ám | 30 Áin | Shielded | 120 °C | -40 C | |||

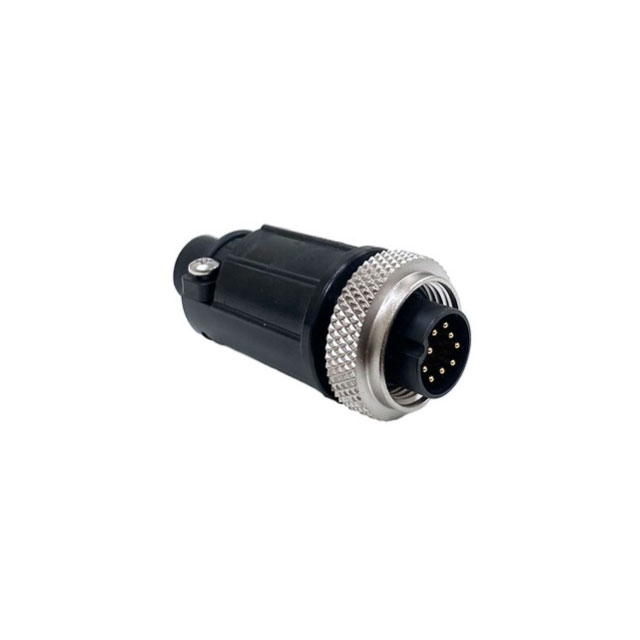

 SWITCHCRAFT/CONXALL | IP66 IP68 | 9 | Threaded | Keyed | Polybutylene Terephthalate (PBT) | 5.6 A | Free Hanging (In-Line) | Gold | Black Silver | Nickel | Brass | Plug Male Pins | Brass | Backshell Cable Clamp Coupling Nut | Metal | Shielded | 120 °C | -40 C | Polybutylene Terephthalate (PBT) | 5.08 mm | 0.2 in | ||||

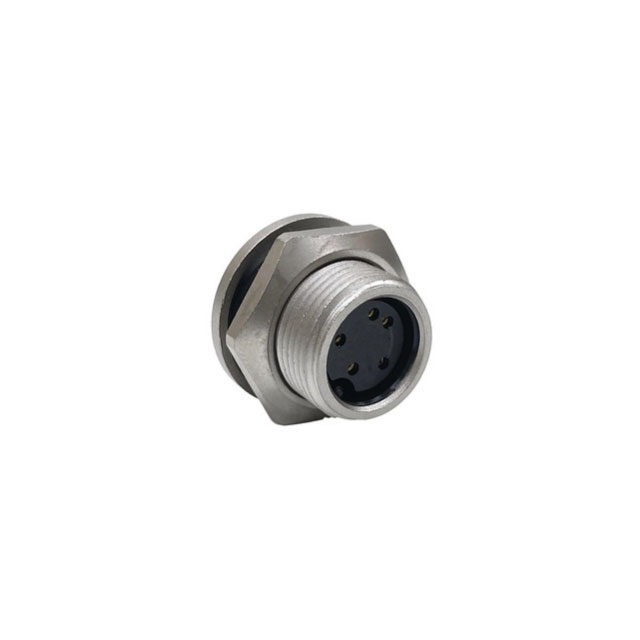

 SWITCHCRAFT/CONXALL | IP66 IP68 | 5 | Threaded | Bulkhead - Front Side Nut | Keyed | Thermoplastic | 5.6 A | Solder | Panel Mount Through Hole | Gold | Silver | Nickel | Copper Alloy | Receptacle Female Sockets | Copper Alloy | Cap (Cover) Ground | Metal | 0.76 Ám | 30 Áin | Shielded | 120 °C | -40 C |
