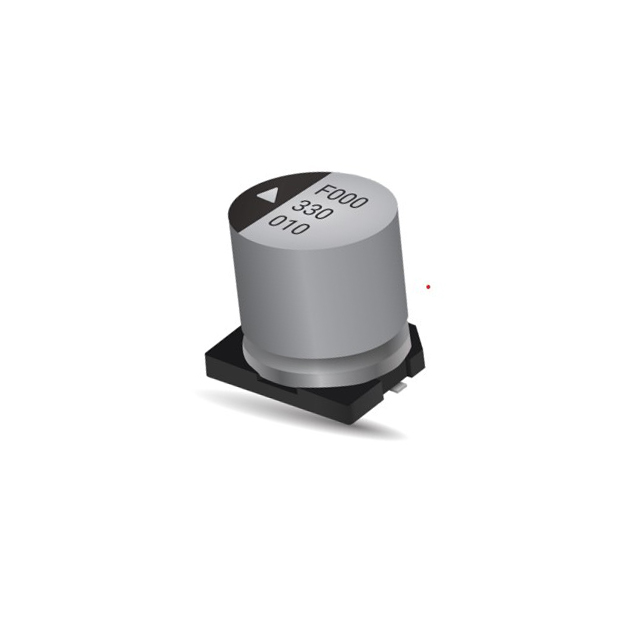

AEK Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 100V 100UF 2000HOURS ESR=650MOHMS 20%

Part	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Applications	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Ripple Current @ Low Frequency	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings
KYOCERA AVX AEK1213101M100R	100 V	0.492 in	12.5 mm	Polar	Surface Mount	650 mOhm	14 mm	0.551 in	20 %	General Purpose	680 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	100 µF	340 mA
KYOCERA AVX AEK1010100M160R	160 V	0.394 in	10 mm	Polar	Surface Mount	16 Ohm			20 %	General Purpose	90 mA	3000 Hrs	Radial Can - SMD	-40 C	105 ░C	10 µF	45 mA	0.406 "	0.406 in	10.3 mm	10.3 mm	11 mm	0.433 in
KYOCERA AVX AEK0810471M010R	10 V	0.315 in	8 mm	Polar	Surface Mount	300 mOhm			20 %	General Purpose	360 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	470 µF	180 mA	0.327 in	0.327 in	8.3 mm	8.3 mm	11 mm	0.433 in
KYOCERA AVX AEK1013330M160R	160 V	0.394 in	10 mm	Polar	Surface Mount	9 Ohm	14 mm	0.551 in	20 %	General Purpose	215 mA	3000 Hrs	Radial Can - SMD	-40 C	105 ░C	33 ÁF	107.5 mA	0.406 "	0.406 in	10.3 mm	10.3 mm
KYOCERA AVX AEK0608221M010R	10 V	0.248 "	6.3 mm	Polar	Surface Mount	680 mOhm	8.5 mm	0.335 "	20 %	Automotive	180 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	220 µF	90 mA	0.26 in	0.26 in	6.6 mm	6.6 mm			AEC-Q200
KYOCERA AVX AEK0810330M080R	80 V	0.315 in	8 mm	Polar	Surface Mount	1.95 Ohm			20 %	Automotive	450 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	33 ÁF	225 mA	0.327 in	0.327 in	8.3 mm	8.3 mm	11 mm	0.433 in	AEC-Q200
KYOCERA AVX AEK0608470M025R	25 VDC	0.248 "	6.3 mm	Polar	Surface Mount	680 mOhm	8.5 mm	0.335 "	20 %	General Purpose	180 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	47 µF	90 mA	0.26 in	0.26 in	6.6 mm	6.6 mm
KYOCERA AVX AEK1012331M035R	35 V	0.394 in	10 mm	Polar	Surface Mount	150 mOhm			20 %	General Purpose	900 mA	2000 Hrs	Radial Can - SMD	-55 C	105 ░C	330 µF	450 mA	0.406 "	0.406 in	10.3 mm	10.3 mm	13 mm	0.512 "
