TL36W Series

Manufacturer: APEM Inc.

Catalog

SWITCH TOGGLE SPDT 500MA 48V

Part	Electrical Life	Actuator Material	Features	Actuator Length [x]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Bushing Thread	Voltage Rating - AC	Switch Function	Termination Style	Mounting Type	Current Rating (Amps)	Illumination
APEM Inc. TL36W019400	20000 Steps	Brass Nickel Plated	Black Insulated Lever	5.5 mm	SPDT	85 °C	-30 ░C	48 V	Standard Round	Unthreaded	48 V	On-On	PC Pin	Right Angle Through Hole	500 mA	Non-Illuminated
APEM Inc. TL36W000000	60000 Cycles	Brass Nickel Plated	Epoxy Sealed Terminals	5.3 mm	SPDT	85 °C	-30 ░C	20 V	Standard Round	Unthreaded	20 V	On-On	PC Pin	Right Angle Through Hole	0.4 VA	Non-Illuminated
APEM Inc. TL36W005000	60000 Cycles	Brass Nickel Plated	Epoxy Sealed Terminals	5.3 mm	SPDT	85 °C	-30 ░C	20 V	Standard Round	Unthreaded	20 V	On-On	PC Pin	Right Angle Through Hole	0.4 VA	Non-Illuminated
APEM Inc. TL36WS84000	60000 Cycles	Brass Nickel Plated	High Temperature Plastic Cap	5.5 mm	SPDT	85 °C	-40 C	20 V	Standard Round	Unthreaded	20 V	On-On	Gull Wing	Right Angle Surface Mount	0.4 VA	Non-Illuminated

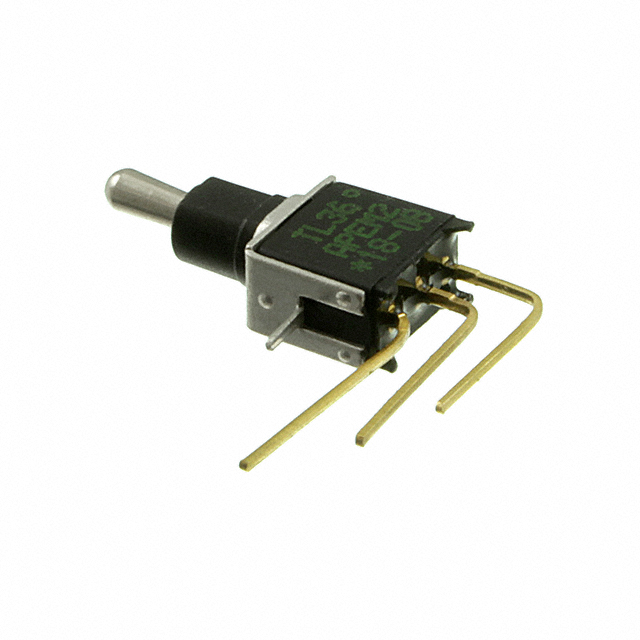

APEM Inc. TL36WW05000	60000 Cycles	Brass Nickel Plated	Epoxy Sealed Terminals	5.3 mm	SPDT	85 °C	-30 ░C	20 V	Standard Round	Unthreaded	20 V	On-On	PC Pin	Right Angle Through Hole Vertical	0.4 VA	Non-Illuminated
