G5LB-14 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

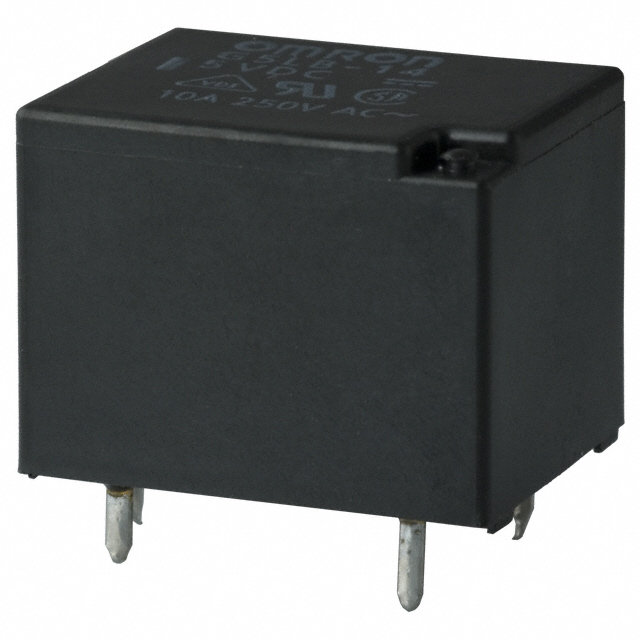

RELAY GEN PURPOSE SPDT 10A 24V
| Part | Coil Resistance | Load - Max Switching | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Coil Insulation | Mounting Type | Must Release Voltage | Contact Form | Switching Voltage | Coil Type | Operate Time | Coil Current | Must Operate Voltage | Seal Rating | Relay Type | Approval Agency | Contact Material | Contact Rating (Current) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1.6 kOhms | 1250 W 2500 VA | 5 ms | 85 °C | -40 C | 24 VDC | Class B | Through Hole | 2.4 VDC | SPDT (1 Form C) | 125 VDC 250 VAC | Non Latching | 10 ms | 15.2 mA | 18 VDC | Sealed - Fully | General Purpose | CSA UR VDE | Silver Tin Oxide (AgSnO) | 10 A | PC Pin |
