Power Inductors - SMD 3.3uH 20.2A 0.0057ohms
Power Inductors - SMD 3.3uH 20.2A 0.0057ohms
| Part | Tolerance | Mounting Type | Package / Case | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Shielding | Current - Saturation (Isat) | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

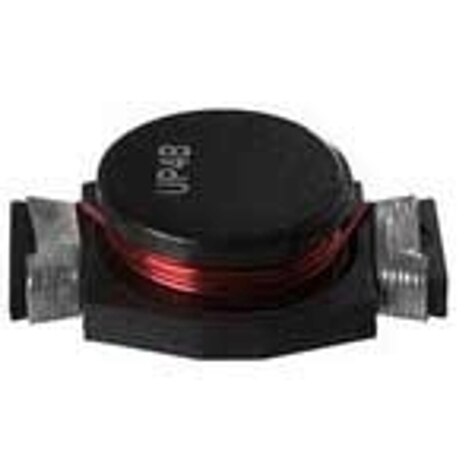

 Eaton - Electronics Division | 20 % | Surface Mount | Nonstandard | Drum Core Wirewound | 15 mm | 22.1 mm | 0.87 in | 0.591 in | Ferrite | 85 °C | -40 C | 5.7 mOhm | Unshielded | 20.2 A | 11 A | 7.87 mm | 0.31 in | 3.3 µH | 100 kHz |
