28345 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 230V

Part	Coil Resistance	Contact Form	Contact Rating (Current)	Contact Material	Features	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Coil Voltage	Relay Type	Switching Voltage	Mounting Type	Termination Style	Operate Time	Coil Type
Phoenix Contact 2834591	41.8 kOhms	DPDT (2 Form C)	8 A	Silver Nickel (AgNi)	Lighted Indicator Socket Included	22 ms	-25 °C	60 °C	5.5 mA	230 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Spring Terminal	12 ms	Non Latching
Phoenix Contact 2834533	923.08 Ohms	DPDT (2 Form C)	8 A	Gold (Au) Silver Nickel (AgNi)	Lighted Indicator Varistor	14 ms	-25 °C	60 °C	26 mA	24 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	12 ms	Non Latching

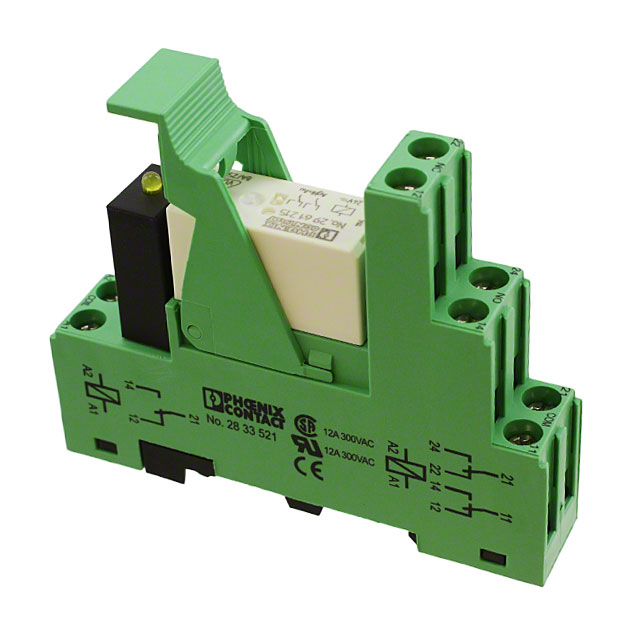

Phoenix Contact 2834520	1263 Ohms	DPDT (2 Form C)	8 A	Gold (Au) Silver Nickel (AgNi)	Diode Lighted Indicator Socket Included	10 ms	-25 °C	60 °C	19 mA	24 VDC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	8 ms	Non Latching
Phoenix Contact 2834546	17.14 kOhms	DPDT (2 Form C)	8 A	Gold (Au) Silver Nickel (AgNi)	Lighted Indicator Varistor	16 ms	-25 °C	60 °C	7 mA	120 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	12 ms	Non Latching
Phoenix Contact 2834559	41.82 kOhms	DPDT (2 Form C)	8 A	Gold (Au) Silver Nickel (AgNi)	Lighted Indicator Varistor	22 ms	-25 °C	60 °C	5.5 mA	230 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	12 ms	Non Latching

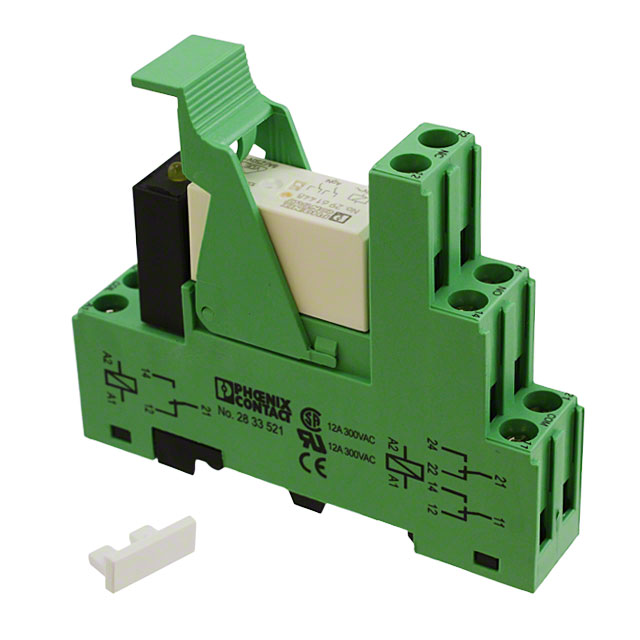

Phoenix Contact 2834504	17.1 kOhms	DPDT (2 Form C)	8 A	Silver Nickel (AgNi)	Lighted Indicator Socket Included Varistor	16 ms	-25 °C	60 °C	7 mA	120 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	12 ms	Non Latching

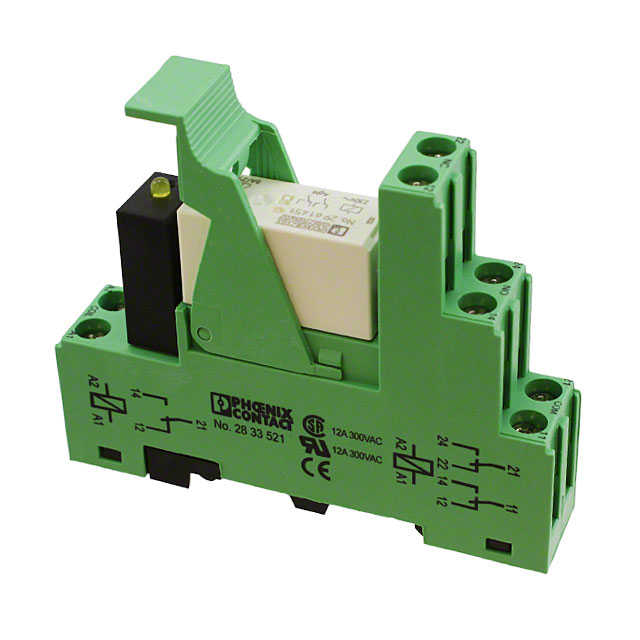

Phoenix Contact 2834517	41.8 kOhms	DPDT (2 Form C)	8 A	Silver Nickel (AgNi)	Lighted Indicator Socket Included Varistor	22 ms	-25 °C	60 °C	5.5 mA	230 VAC	General Purpose	250 VAC 250 VDC	DIN Rail	Screw Terminal	12 ms	Non Latching
