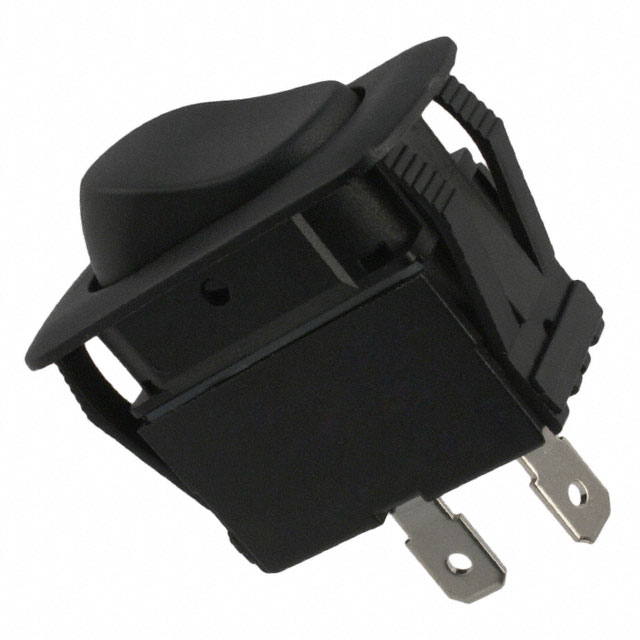

GRB263A Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPST 16A 125V
| Part | Mechanical Life | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Termination Style | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Ingress Protection | Approval Agency | Actuator Marking | Mounting Type | Color - Actuator/Cap | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | 14 V | 85 °C | -20 ░C | On-Off | SPST | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 21.2 mm | 36.6 mm | IP56 - Dust Protected Water Resistant | cULus ENEC | No Marking | Panel Mount Snap-In | Black | 125 V | 16 A 21 A |
