VLM Series

Catalog

POWER INDUCTORS - SMD 820NH 2.0MOHMS 36A PWR WOUND AEC-Q200

Part	Current Rating (Amps)	Ratings	Type	Material - Core	DC Resistance (DCR) [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Tolerance	Current - Saturation (Isat)	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case

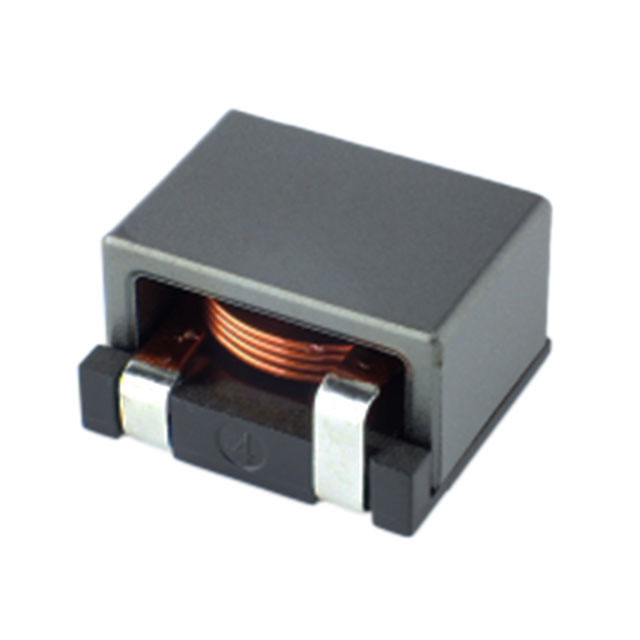

TDK Corporation VLM13580T-R82M-D1	12.6 A	AEC-Q200	Drum Core Wirewound	Ferrite	2 mOhm	Surface Mount	8.3 mm	0.327 in	100 kHz	20 %	36 A	820 nH	0.48 in	12.2 mm	13.5 mm	0.531 in	125 °C	-40 C	Shielded	Nonstandard

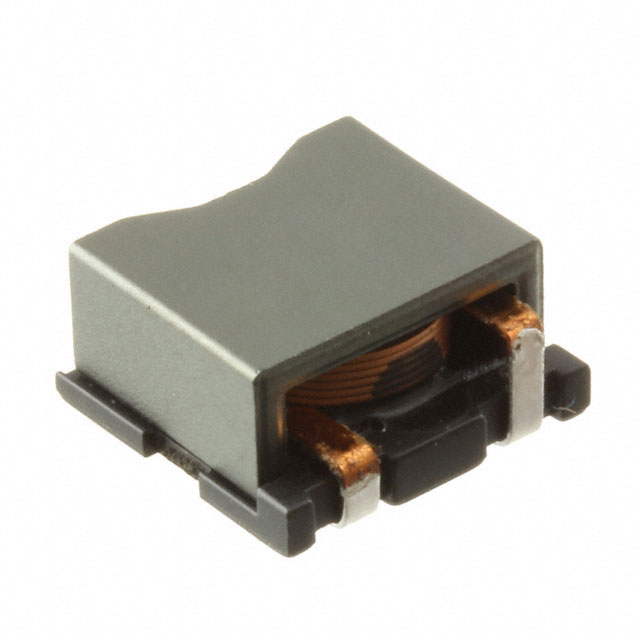

TDK Corporation VLM10555T-1R8M8R8-2H	8.8 A	AEC-Q200	Drum Core Wirewound	Ferrite	6.44 mOhm	Surface Mount	5.6 mm	0.22 in	100 kHz	20 %	18 A	1.8 µH	0.413 in	10.5 mm	10.6 mm	0.417 in	125 °C	-40 C	Shielded	Nonstandard
TDK Corporation VLM10555T-R70M120-3	12 Amps		Drum Core Wirewound	Ferrite	2.5 mOhm	Surface Mount	5.6 mm	0.22 in	100 kHz	20 %	26 A	700 nH	0.413 in	10.5 mm	10.6 mm	0.417 in	125 °C	-40 C	Shielded	Nonstandard
