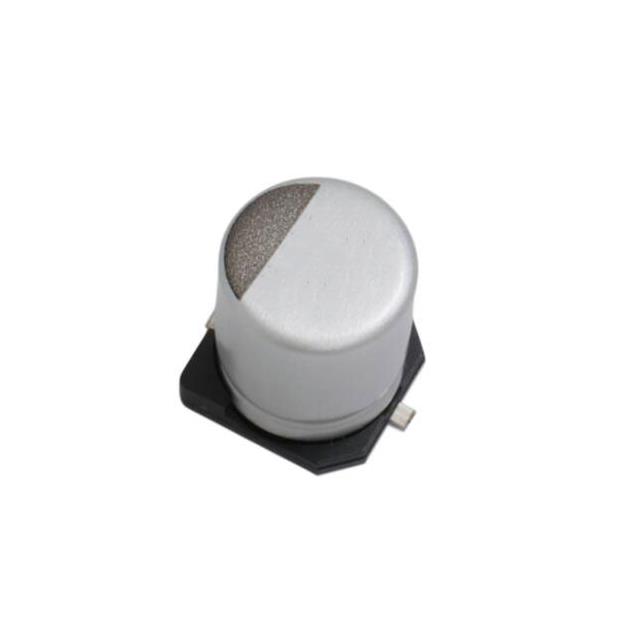

HXF Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 35VDC 270UF TOL 20% 10X10MM AEC-Q200

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Applications	Mounting Type	Package / Case	Tolerance	Ripple Current @ Low Frequency	Capacitance	Ripple Current @ High Frequency	Ratings	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]
Chemi-Con HHXF350ARA271MJA0G	-55 C	135 °C	35 V	3000 Hrs	0.394 in	10 mm	16 mOhm	0.413 "	10.5 mm	Hybrid	Automotive	Surface Mount	Radial Can - SMD	20 %	450 mA	270 µF	4.5 A	AEC-Q200	0.406 "	0.406 in	10.3 mm	10.3 mm
Chemi-Con HHXF250ARA221MHA0G	-55 C	135 °C	25 VDC	3000 Hrs	0.315 in	8 mm		0.413 "	10.5 mm	Hybrid	Automotive	Surface Mount	Radial Can - SMD	20 %	390 mA	220 µF	3.9 A	AEC-Q200	0.327 in	0.327 in	8.3 mm	8.3 mm
Chemi-Con HHXF250ARA151MHA0G	-55 C	135 °C	25 VDC	3000 Hrs	0.315 in	8 mm		0.413 "	10.5 mm	Hybrid	Automotive	Surface Mount	Radial Can - SMD	20 %	390 mA	150 µF	3.9 A	AEC-Q200	0.327 in	0.327 in	8.3 mm	8.3 mm
Chemi-Con HHXF250ARA561MJH0G	-55 C	135 °C	25 VDC	4000 Hrs	0.394 in	10 mm	10 mOhm		17 mm	Hybrid	Automotive	Surface Mount	Radial Can - SMD	20 %	600 mA	560 µF	6 A	AEC-Q200	0.406 "	0.406 in	10.3 mm	10.3 mm	0.669 "
