HFW6S Series

Catalog

CONN FFC FPC VERT 6POS 1MM SMD

Part	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flat Flex Type	Termination	Cable End Type	Voltage Rating	Housing Material	Pitch	Pitch	Connector/Contact Type	Contact Finish	Number of Positions	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Mounting Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

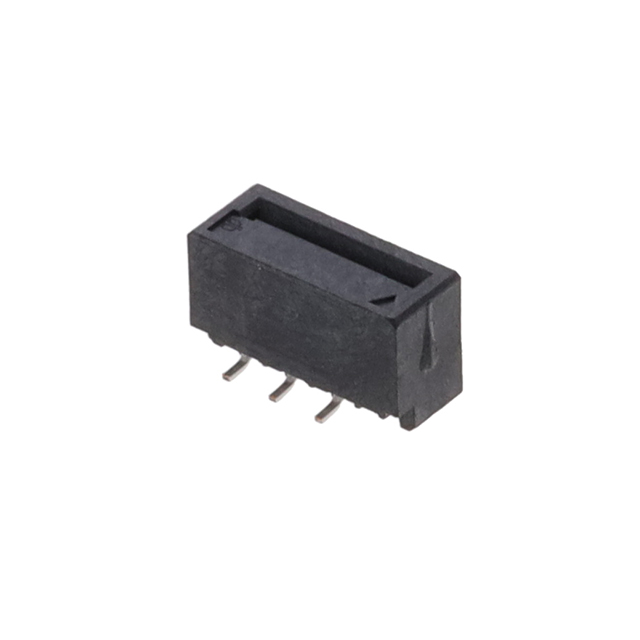

Amphenol ICC (FCI) HFW6S-2STE1HLF	Black	30	-55 C	85 °C	Phosphor Bronze	FFC FPC	Solder	Straight Tapered	100 V	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Contacts Vertical - 1 Sided	Tin	6	UL94 V-0	0.209 in	5.3 mm	Surface Mount	0.3 mm	0.33 mm

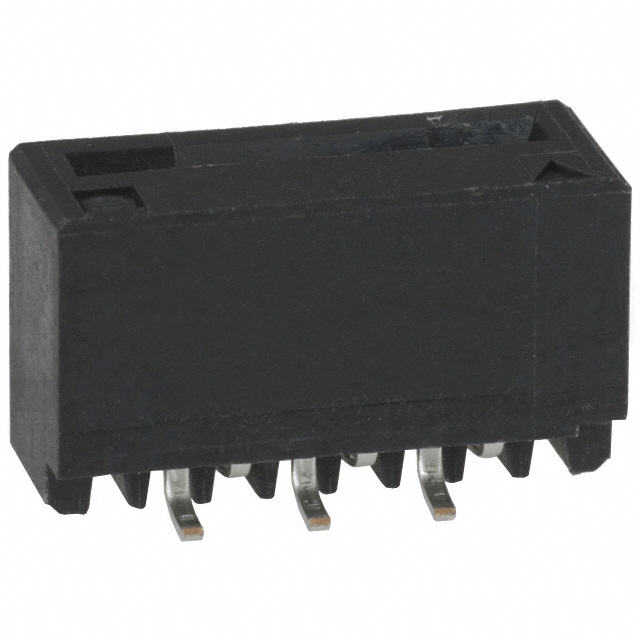

Amphenol ICC (FCI) HFW6S-2STE1LF	Black	30	-55 C	85 °C	Phosphor Bronze	FFC FPC	Solder	Straight Tapered	100 V	Glass Filled Nylon 6T Polyamide (PA6T)	1 mm	0.039 in	Contacts Vertical - 1 Sided	Tin	6	UL94 V-0	0.209 in	5.3 mm	Surface Mount	0.3 mm	0.33 mm
