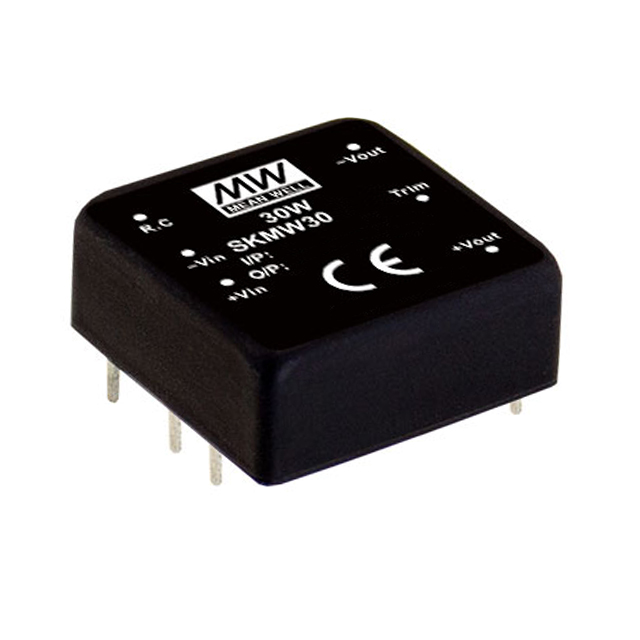

SKMW30 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 30W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Output 1 | Efficiency | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Type | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Package / Case | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 1.5 kV | 15 V | 89 % | 2 A | -40 °C | 85 °C | 30 Watts | Isolated Module | 18 V | 1 | 75 V | Through Hole | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) |
MEAN WELL USA Inc. | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 1.5 kV | 15 V | 89 % | 2 A | -40 °C | 85 °C | 30 Watts | Isolated Module | 9 V | 1 | 36 V | Through Hole | 6-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) |
