FKH Series

Catalog

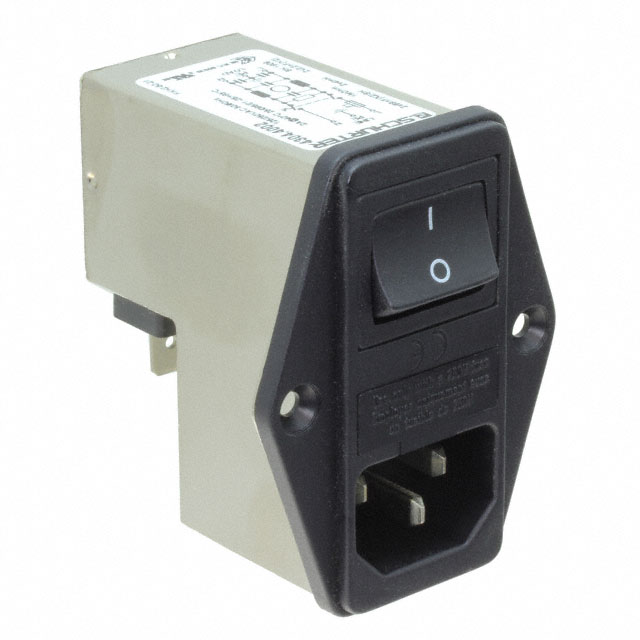

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT

Part	Material Flammability Rating	Connector Style	Termination	Termination	Termination	Features	Accomodates a Fuse	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Current Rating - Filter	Switch Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Approval Agency	Mounting Type	Connector Type	Ingress Protection	Filter Type
SCHURTER Inc. 4304.4045	UL94 V-0	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Shielded		10 A	250 VAC	10 A	Switch On-Off	61 mm	29.5 mm	Fuse Holder	cULus ENEC	Flange Panel Mount	Receptacle Male Blades - Module	IP40	Filtered (EMI RFI) - Commercial
SCHURTER Inc. 4304.4003	UL94 V-0	IEC 320-C14	6.3 mm	Quick Connect	0.25 "	Shielded		10 A	250 VAC	4 A	Switch On-Off	61 mm	29.5 mm	Fuse Holder	cULus ENEC	Flange Panel Mount	Receptacle Male Blades - Module	IP40	Filtered (EMI RFI) - Commercial
