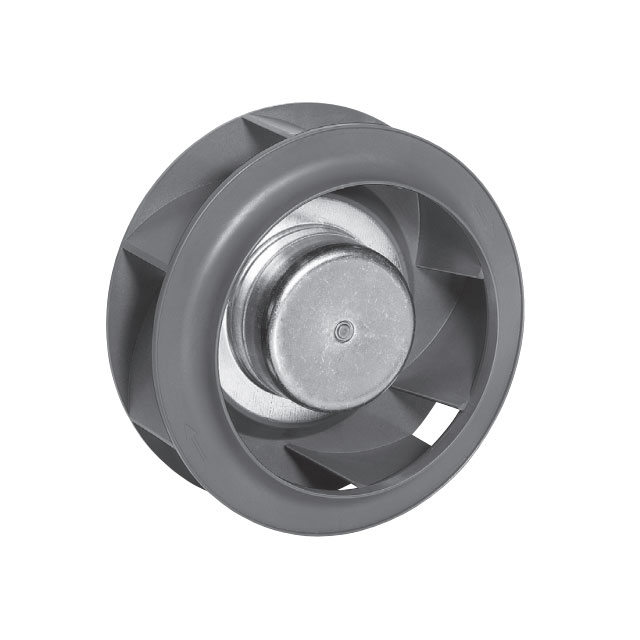

R1G175 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN IMP MTRZD 175X69MM 48VDC
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Approval Agency | Ingress Protection | Fan Type | Bearing Type | Features | Voltage - Rated | Termination | Size / Dimension | Size / Dimension [diameter] | Noise | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Power (Watts) | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA66) Nylon 6/6 Fiberglass Reinforced | 36 VDC | 52 VDC | Aluminum | 1.75 A | CCC EAC | IP22 | Motorized Impellers | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 48 VDC | 4 Wire Leads with Splice Terminals | Round | 175 mm | 72 dB(A) | 40 °C | -25 °C | -25 °C | 40 °C | 69 mm | 75 W | 4000 RPM |
