ERD-S2 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

RES 10K OHM 5% 1/4W AXIAL

Part	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Number of Terminations	Resistance	Composition	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Supplier Device Package	Power (Watts)	Power (Watts)	Temperature Coefficient

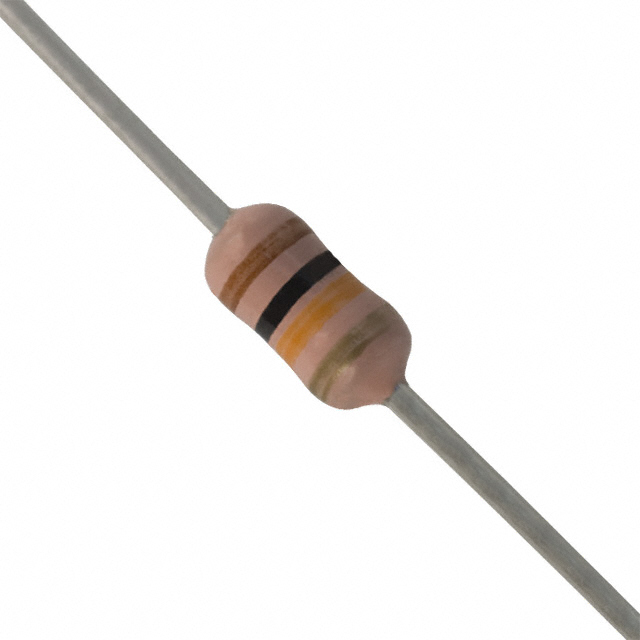

Panasonic Industrial Automation Sales ERD-S2TJ103V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	10000 Ohms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW

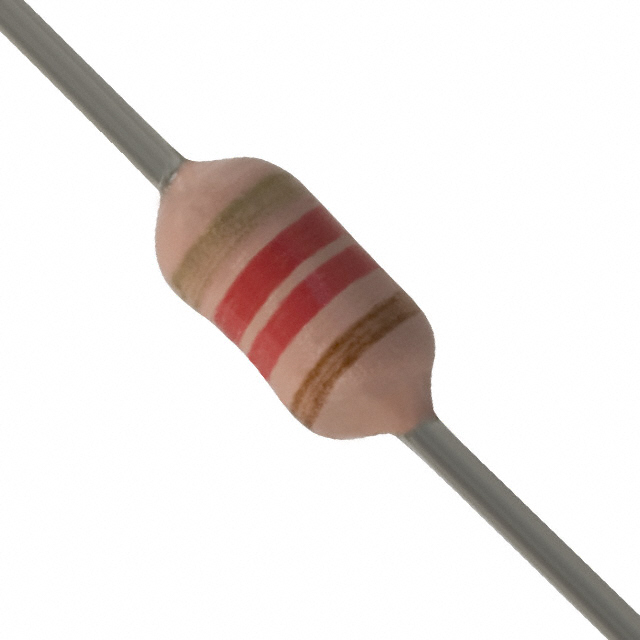

Panasonic Industrial Automation Sales ERD-S2TJ122V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	1.2 kOhms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW
Panasonic Industrial Automation Sales ERD-S2TJ1R2V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	1.2 Ohms	Carbon Film	5 %	155 °C	-55 °C			Axial	0.25 W	250 mW	350 ppm/°C

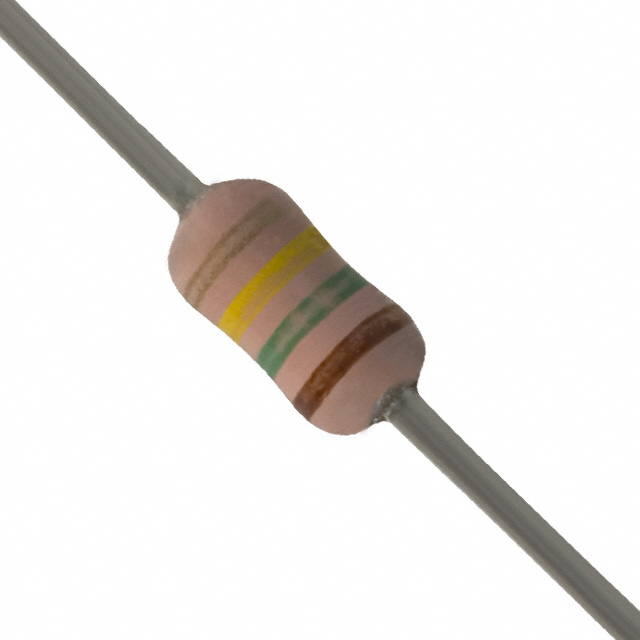

Panasonic Industrial Automation Sales ERD-S2TJ154V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	150000 Ohms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-500 ppm/°C	Axial	0.25 W	250 mW

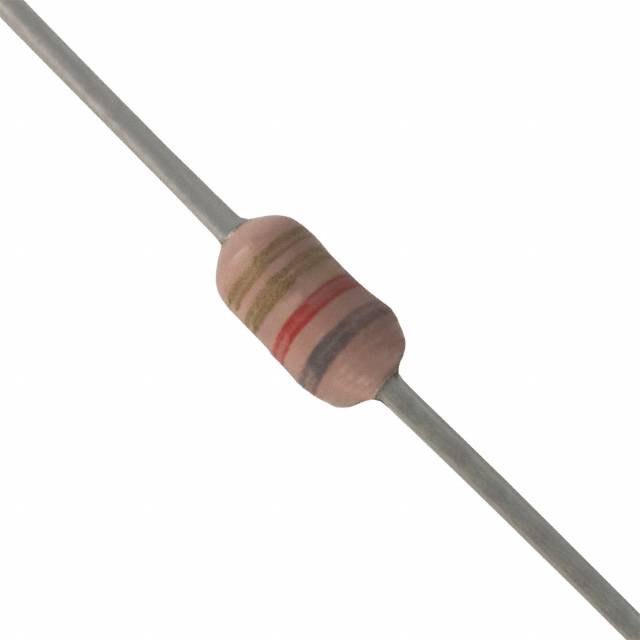

Panasonic Industrial Automation Sales ERD-S2TJ8R2V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2		Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW

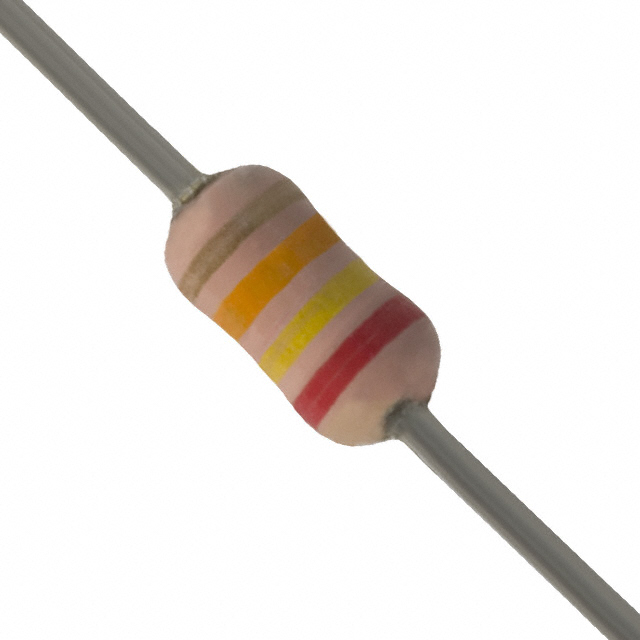

Panasonic Industrial Automation Sales ERD-S2TJ243V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	24 kOhms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW
Panasonic Industrial Automation Sales ERD-S2TJ3R3V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	3.3 Ohms	Carbon Film	5 %	155 °C	-55 °C			Axial	0.25 W	250 mW	350 ppm/°C

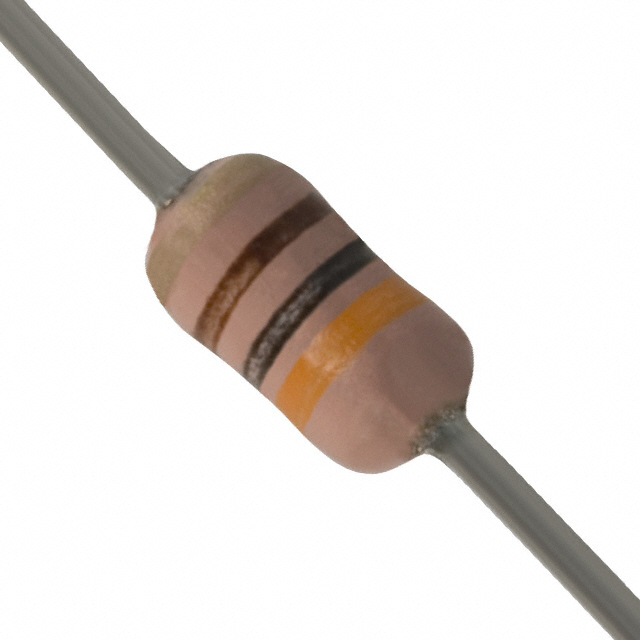

Panasonic Industrial Automation Sales ERD-S2TJ301V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	300 Ohms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW

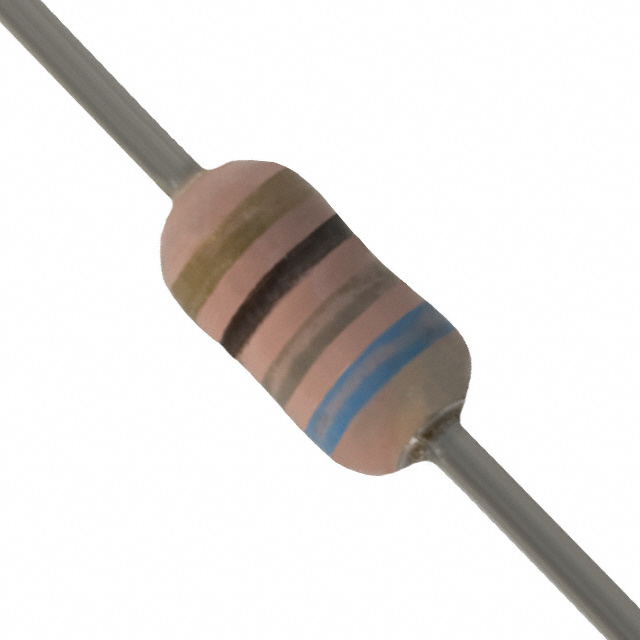

Panasonic Industrial Automation Sales ERD-S2TJ680V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	68 Ohms	Carbon Film	5 %	155 °C	-55 °C	-150 ppm/°C	-350 ppm/°C	Axial	0.25 W	250 mW

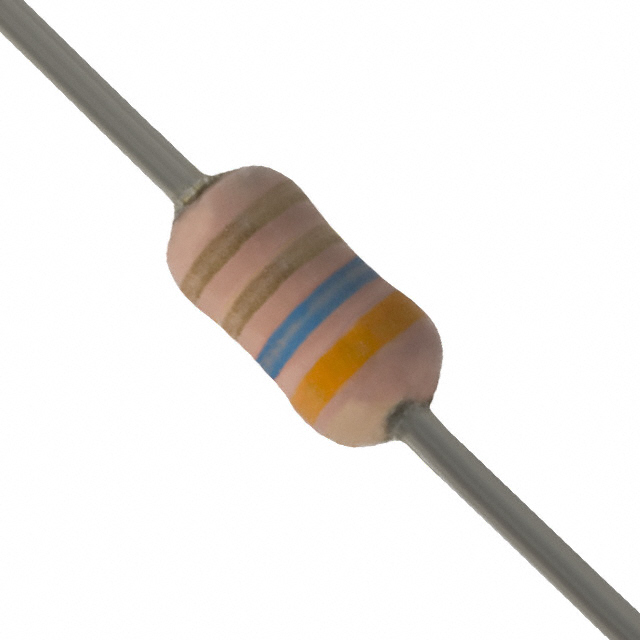

Panasonic Industrial Automation Sales ERD-S2TJ3R6V	Axial	3.2 mm	0.126 in	0.067 in	1.7 mm	2	3.6 Ohms	Carbon Film	5 %	155 °C	-55 °C			Axial	0.25 W	250 mW	350 ppm/°C
