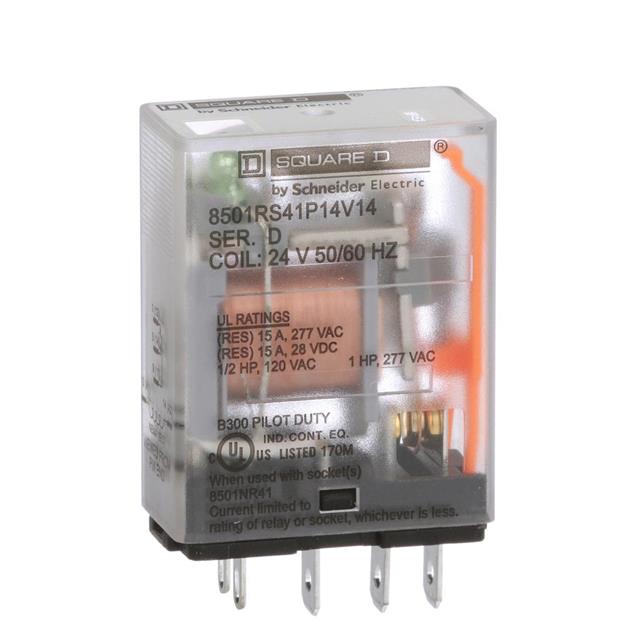

8501RS Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
GENERAL PURPOSE RELAYS RELAY 240VAC 12A TYPE R
| Part | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Coil Voltage | Approval Agency | Coil Type | Operate Time | Mounting Type | Release Time | Termination Style | Contact Rating (Current) | Relay Type | Switching Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | SPDT (1 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VAC | CE CSA UL | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA |

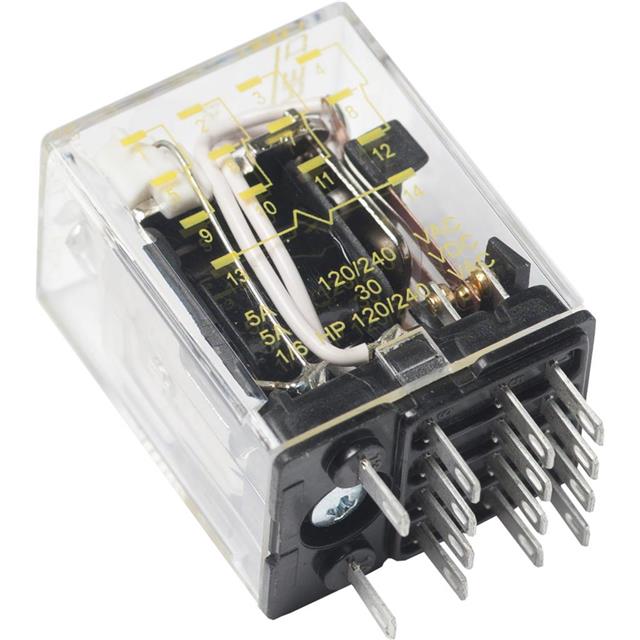

 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Silver Tin Oxide (AgSnO) | 12 VDC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 5 A | General Purpose | 30 VDC 240 VAC | 150 W 1200 VA | |
 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VDC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 8 A | General Purpose | 30 VDC 300 VAC | 240 W 2400 VA | |

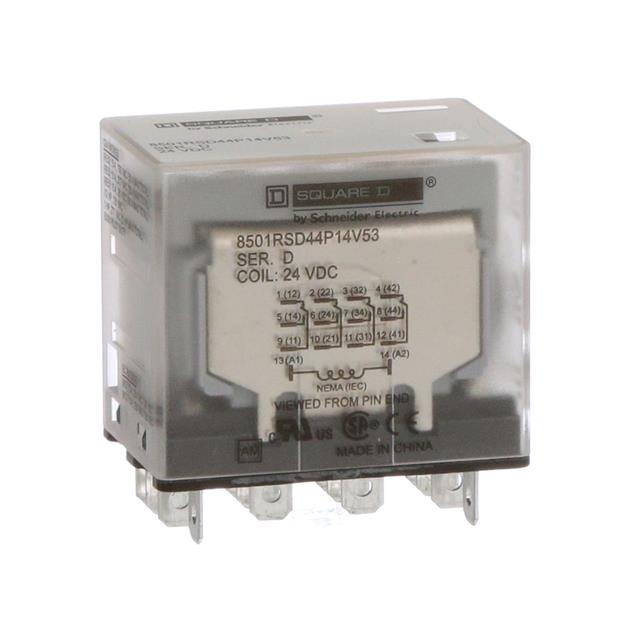

 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VDC | CE CSA UL | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA |

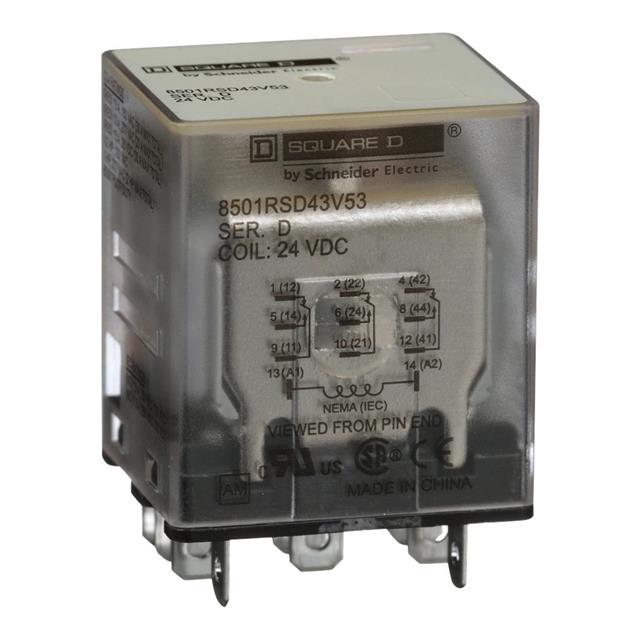

 SCHNEIDER ELECTRIC | 3PDT (3 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VDC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA | |

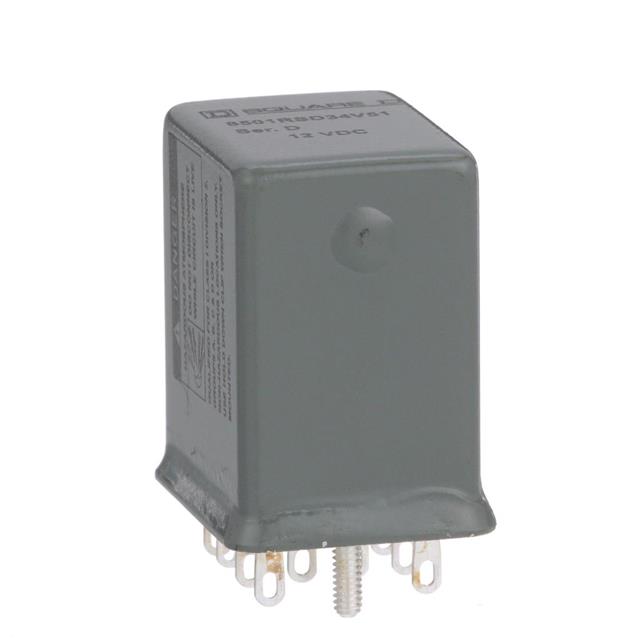

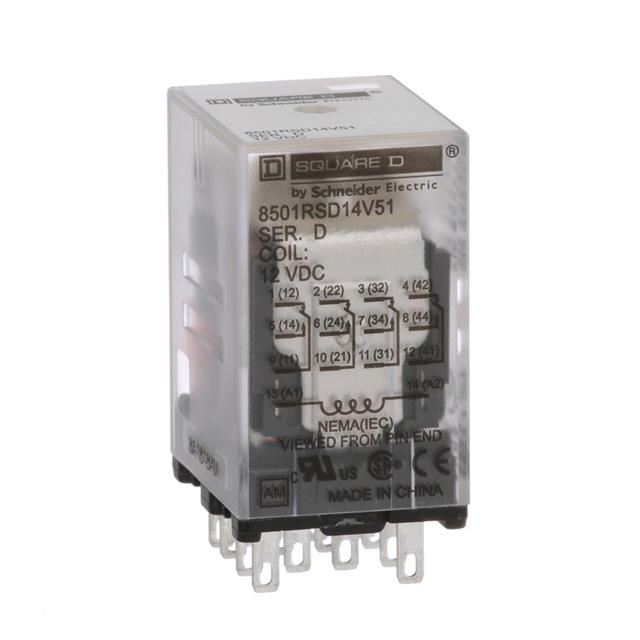

 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 12 VDC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 8 A | General Purpose | 30 VDC 300 VAC | 240 W 2400 VA | |
 SCHNEIDER ELECTRIC | SPDT (1 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VDC | CE CSA UL | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA |
 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VAC | CE CSA UL | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 5 A | General Purpose | 30 VDC 240 VAC | 150 W 1200 VA |

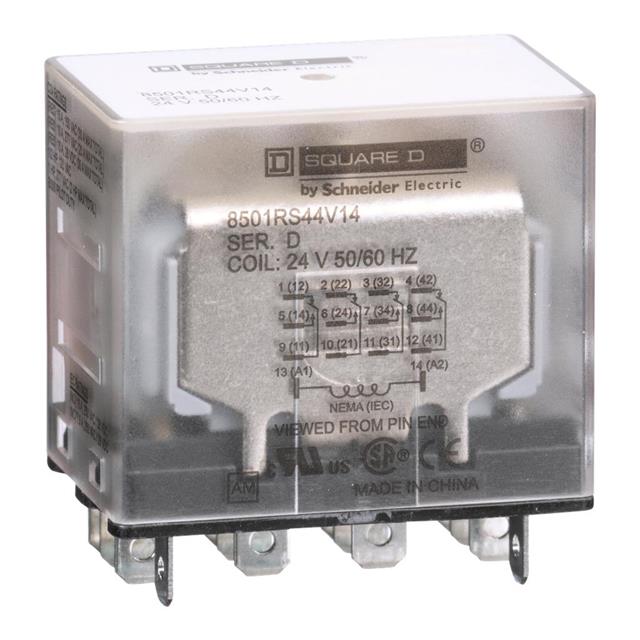

 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 24 VAC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA | |

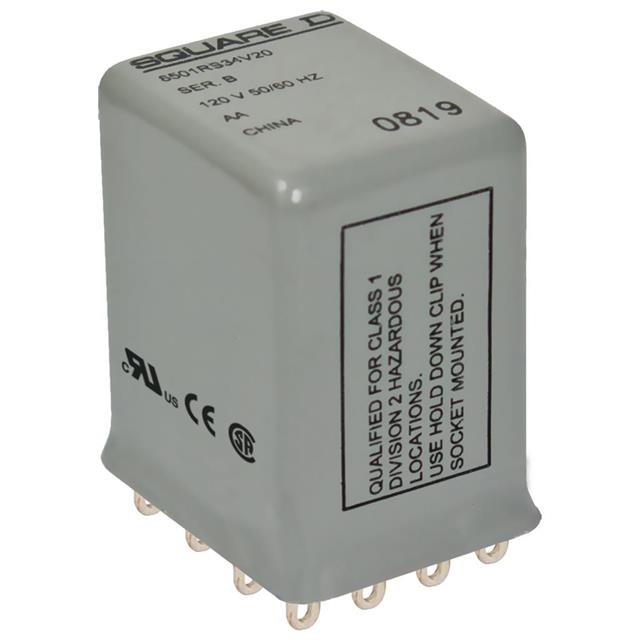

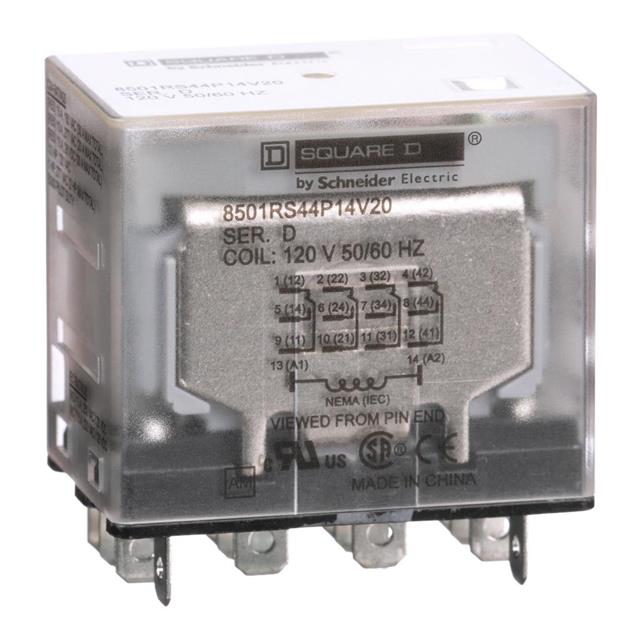

 SCHNEIDER ELECTRIC | 4PDT (4 Form C) | 55 °C | -40 C | Gold (Au) Silver (Ag) | 120 VAC | Non Latching | 20 ms | Socketable | 20 ms | Plug In | 15 A | General Purpose | 30 VDC 300 VAC | 450 W 4500 VA |
