SGA12U18 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

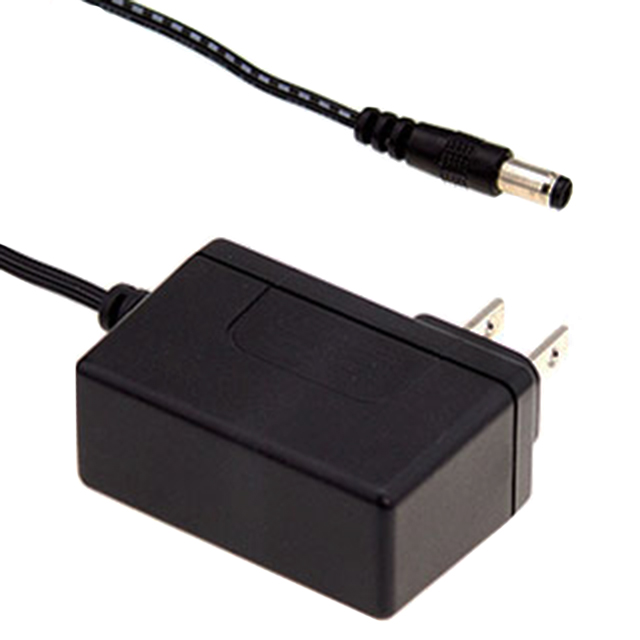

AC/DC WALL MOUNT ADAPTER 18V 12W
| Part | Applications | Region Utilized | Input Type | Polarization | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Input Connector | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | No Load Power Consumption | Cord Length | Cord Length | Output Connector [x] | Output Connector [diameter] | Output Connector | Current - Output (Max) [Max] | Efficiency | Form | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | North America | Fixed Blade | Positive Center | 12 W | 264 VAC | 90 VAC | 18 V | NEMA 1-15P | -20 ░C | 60 °C | CB cURus | 75 mW | 70.9 " | 1.8 m | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 666 mA | Level VI | Wall Mount | 62.2 mm | 2.45 in | 45.5 mm | 1.08 in | 1.79 in | 27.4 mm |
