S2S2 Series

Sen SCR 200V 0.8A 50µA DO214 3L

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sen SCR 200V 0.8A 50µA DO214 3L

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (AV)) (Max)	Supplier Device Package	SCR Type	Package / Case	Current - Off State (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Mounting Type	Voltage - On State (Vtm) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]

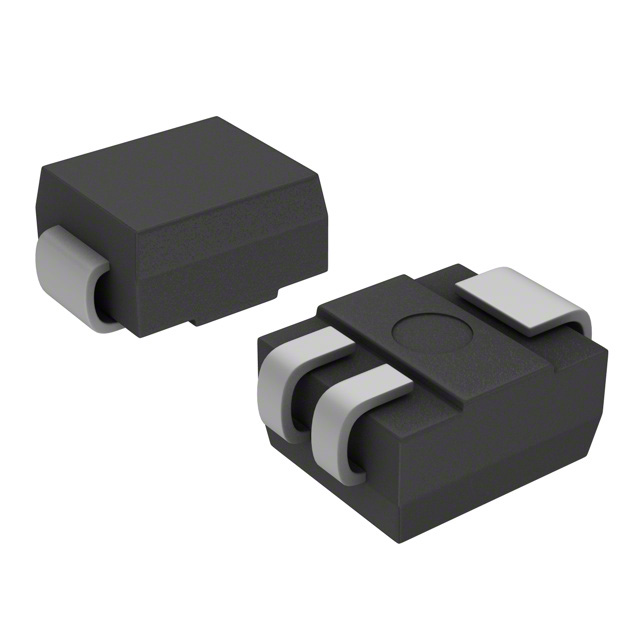

Littelfuse/Commercial Vehicle Products S2S2RP	16 A 20 A	-40 °C	110 °C	510 mA	DO-214 (Compak)	Sensitive Gate	DO-214AA SMB (3 Leads) Compak	1 µA	800 mV	200 V	5 mA	Surface Mount	1.7 V	50 µA	800 mA

Catalog

Sen SCR 200V 0.8A 50µA DO214 3L

Key Features

• RoHS compliant

• Glass-passivated junctions

• Voltage capability up to 600 V

• Surge capablity up to 20 A

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
