BC020 Series

Manufacturer: GCT

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 32W, 1.0MM PITCH PIN HDR, SIL, TH, VERT, GF, BOX

Part	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Shrouding	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Fastening Type	Termination	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Mounting Type	Connector Type	Contact Type	Overall Contact Length	Overall Contact Length	Number of Positions	Number of Positions [custom]
GCT BC020-32-A-0200-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1	0.236 in	6 mm	0.079 in	2 mm	Copper Alloy	Through Hole	Header	Male Pin
GCT BC020-40-A-0380-0300-L-G		UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1			0.15 in	3.81 mm	Copper Alloy	Through Hole	Header	Male Pin	7.8 mm	0.307 in	40
GCT BC020-12-A-0380-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1			0.15 in	3.81 mm	Copper Alloy	Through Hole	Header	Male Pin	7.8 mm	0.307 in	12
GCT BC020-25-A-0380-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1			0.15 in	3.81 mm	Copper Alloy	Through Hole	Header	Male Pin	7.8 mm	0.307 in	25
GCT BC020-06-A-0380-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1			0.15 in	3.81 mm	Copper Alloy	Through Hole	Header	Male Pin	7.8 mm	0.307 in	6

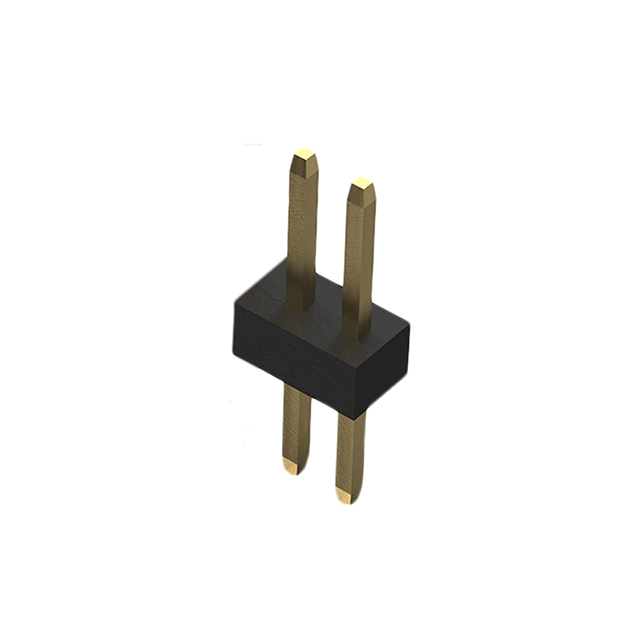

GCT BC020-02-A-0200-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1	0.236 in	6 mm	0.079 in	2 mm	Copper Alloy	Through Hole	Header	Male Pin			2
GCT BC020-34-A-0200-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1	0.236 in	6 mm	0.079 in	2 mm	Copper Alloy	Through Hole	Header	Male Pin				34
GCT BC020-19-A-0200-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1	0.236 in	6 mm	0.079 in	2 mm	Copper Alloy	Through Hole	Header	Male Pin			19
GCT BC020-10-A-0200-0300-L-D	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1	0.236 in	6 mm	0.079 in	2 mm	Copper Alloy	Through Hole	Header	Male Pin			10
GCT BC020-13-A-0380-0300-L-G	Flash	UL94 V-0	Gold	Gold	250 VAC	1 A	Unshrouded	Liquid Crystal Polymer (LCP)	-40 C	105 ░C	Black	1 mm	0.039 in	Push-Pull	Solder	Flash	All	0.118 in	3 mm	1 mm	0.039 in	Square	1			0.15 in	3.81 mm	Copper Alloy	Through Hole	Header	Male Pin	7.8 mm	0.307 in	13
