AY2 Series

Catalog

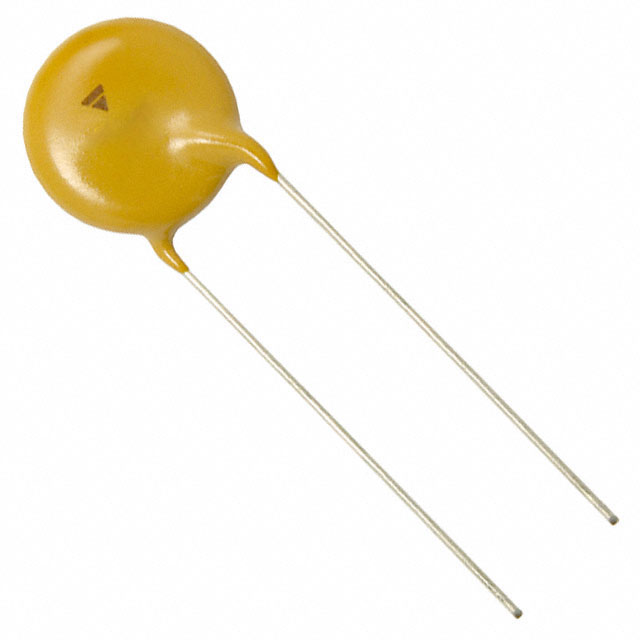

CAP CERAMIC SUPPRESSION X1/Y2 0.0033UF 440VAC/300VAC Y5U 20%( 11 X 5MM) RADIAL DISC 7.5MM 125°C BULK AUTOMOTIVE AEC-Q200

Part	Package / Case	Applications	Ratings	Tolerance	Lead Style	Mounting Type	Temperature Coefficient	Height - Seated (Max)	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Diameter	Capacitance	Lead Spacing	Capacitance Range (Min)	Capacitance Range (Max)	Packages Included	Quantity per Value	Quantity Values	Quantity	Kit Type	Tolerance	Features
Vishay Dale AY2332M41Y5US63L7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	20 %	Straight	Through Hole	Y5U (E)	0.531 in	440 V	125 °C	-55 °C	0.413 in	3300 pF	0.295 in
Vishay Dale AY2100K29U2JS6TL7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	10 %	Straight	Through Hole	U2J	0.413 in	440 V	125 °C	-55 °C	0.295 in	10 pF	0.295 in
Vishay Dale AY2150K29U2JS63L7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	10 %	Straight	Through Hole	U2J	0.413 in	440 V	125 °C	-55 °C	0.295 in	15 pF	0.295 in
Vishay Dale AY2152M31Y5US6TL7
Vishay Dale AY2222M35Y5US6UL7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	20 %	Straight	Through Hole	Y5U (E)	0.492 in	440 V	125 °C	-55 °C	0.374 in	2200 pF	0.295 in

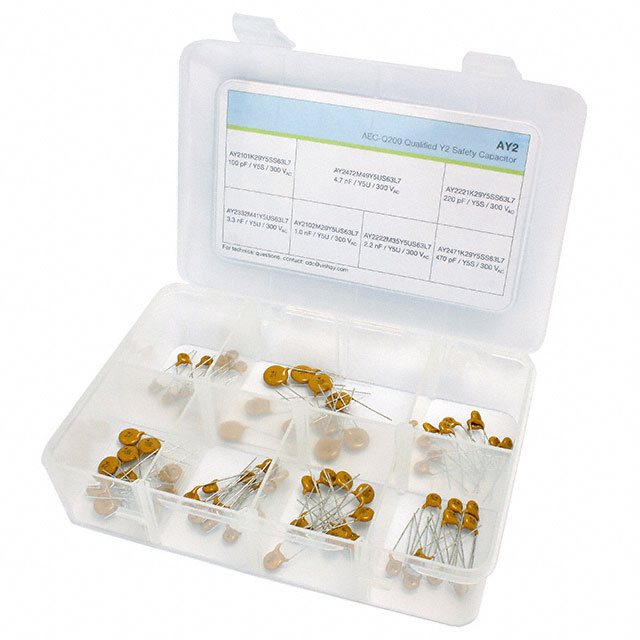

Vishay Dale AY21-KIT-HF		Automotive Safety		10 % 20 %		Through Hole			440 V						100 pF	4700 pF	Radial	10 Each	7 Values	70	Ceramic	±10% ±20%	X1Y2 Safety Rated
Vishay Dale AY2472M49Y5US63L7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	20 %	Straight	Through Hole	Y5U (E)	0.61 in	440 V	125 °C	-55 °C	0.492 in	4700 pF	0.295 in
Vishay Dale AY2392M43Y5US63L7	Disc Radial	Automotive Safety	AEC-Q200 X1 Y2	20 %	Straight	Through Hole	Y5U (E)	0.571 in	440 V	125 °C	-55 °C	0.453 in	3900 pF	0.295 in
