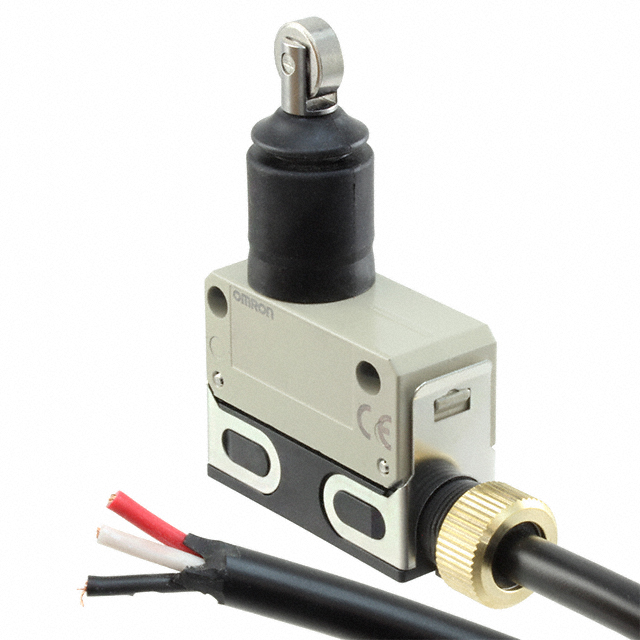

D4E-1D21 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Operating Position | Operating Position | Electrical Life | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Switch Function | Operating Force | Release Force | Mounting Type | Termination Style | Mechanical Life | Voltage Rating - AC | Ingress Protection | Overtravel | Overtravel | Circuit | Actuator Type | Differential Travel | Differential Travel | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1.625 in | 41.3 mm | 500000 Cycles | 5 A | 80 C | -10 °C | 30 V | On-Mom | 1200 gf | 500 gf | Chassis Mount | Cable Leads | 10000000 Cycles | 125 V | IP67 - Dust Tight Waterproof | 3 mm | 0.118 in | SPDT | Roller Plunger | 0.1 mm | 0.004 in | 1.5 mm | 0.06 in |
