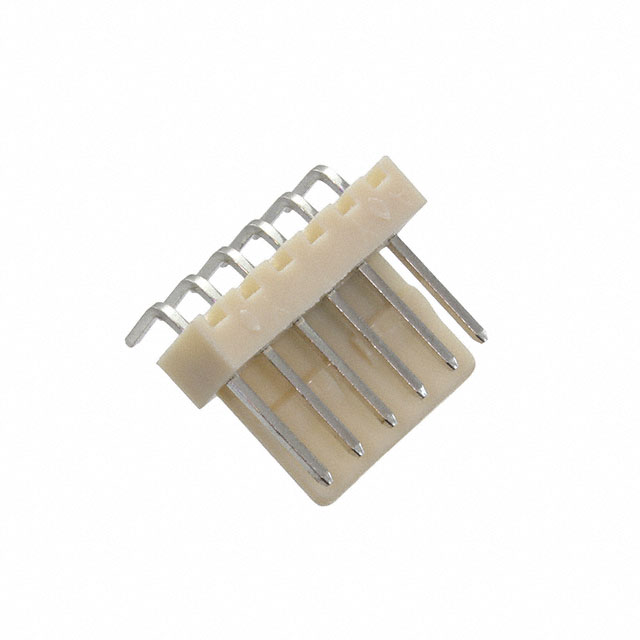

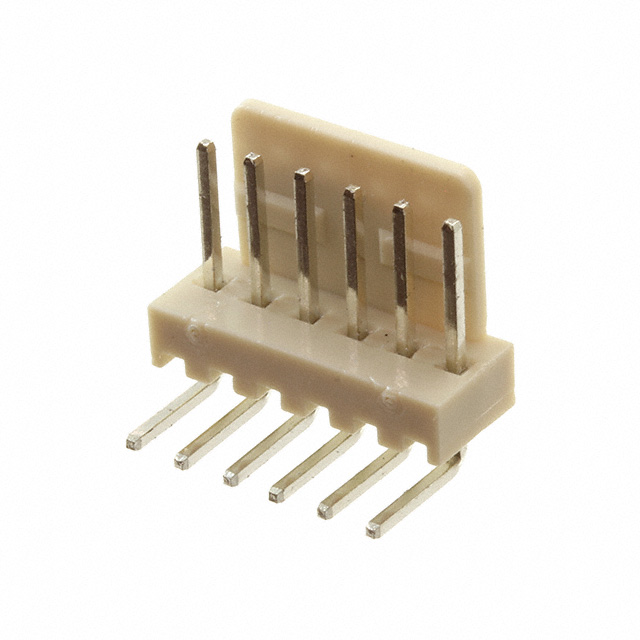

LHA-06 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 6POS 2.54MM
| Part | Shrouding | Connector Type | Current Rating (Amps) | Contact Type | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Fastening Type | Number of Positions | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Mounting Type | Voltage Rating | Style | Insulation Color | Contact Finish - Post | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Length - Mating | Contact Length - Mating [x] | Contact Length - Post [x] | Contact Length - Post | Contact Shape | Termination | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Shrouded - 1 Wall | Header | 3 A | Male Pin | Brass | 0.1 " | 2.54 mm | All | Friction Lock | 6 | 0.228 " | 5.8 mm | UL94 V-2 | Right Angle Through Hole | 250 VAC | Board to Cable/Wire | White | Tin | Nylon 6/6 Polyamide (PA66) | -40 C | 105 ░C | 1 | 7 mm | 0.276 in | 0.134 " | 3.4 mm | Square | Solder | |
 Adam Tech | Shrouded - 1 Wall | Header | 3 A | Male Pin | Brass | 0.1 " | 2.54 mm | All | Friction Lock | 6 | 0.228 " | 5.8 mm | UL94 V-2 | Right Angle Through Hole | 250 VAC | Board to Cable/Wire | White | Tin | Nylon 6/6 Polyamide (PA66) | -25 °C | 85 °C | 1 | 7.45 mm | 0.134 " | 3.4 mm | Square | Solder | 0.293 in |
