305-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 18POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Color	Mounting Type	Pitch	Pitch	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Flange Feature	Card Type	Contact Material	Read Out	Termination	Number of Rows [custom]	Features	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]

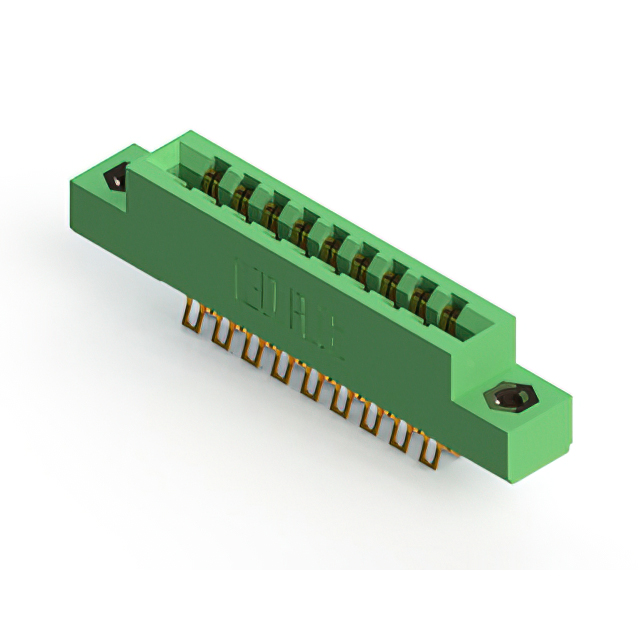

EDAC Inc. 305-018-555-208	Polyester Thermoplastic	2	9	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

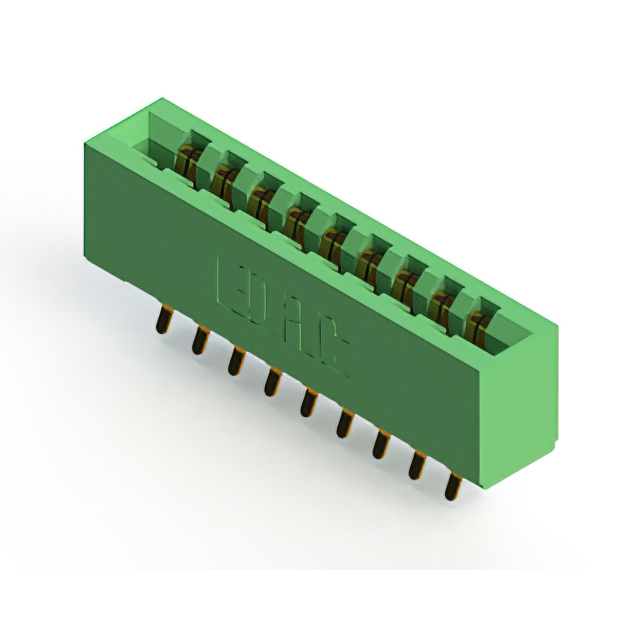

EDAC Inc. 305-018-556-501	Polyester Thermoplastic	2	9	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female		Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

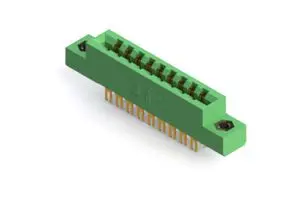

EDAC Inc. 305-018-500-207	Polyester Thermoplastic	2	9	Green	Panel Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Eyelet(s)	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

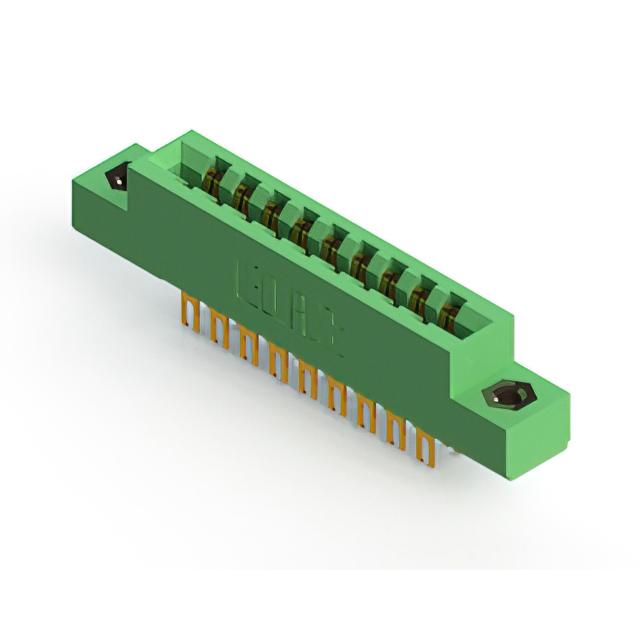

EDAC Inc. 305-018-500-508	Polyester Thermoplastic	2	9	Green	Panel Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Eyelet(s)	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 305-018-556-208	Polyester Thermoplastic	2	9	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

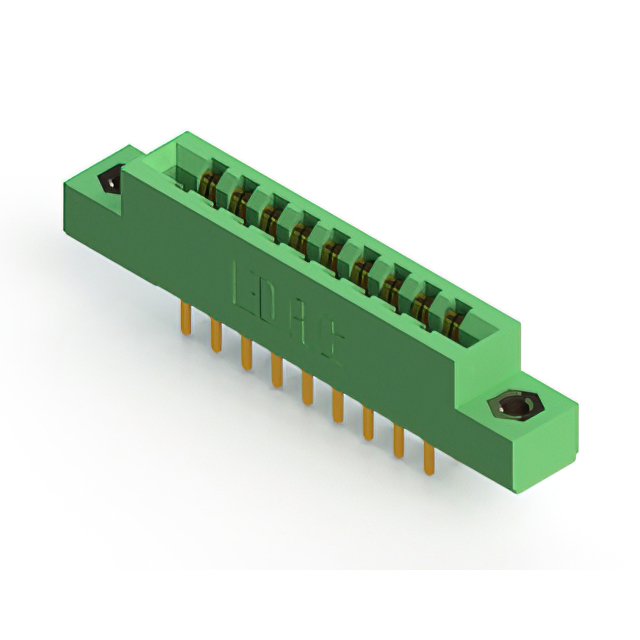

EDAC Inc. 305-018-520-507	Polyester Thermoplastic	2	9	Green	Panel Mount Through Hole	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold
EDAC Inc. 305-018-521-501	Polyester Thermoplastic	2	9	Green	Through Hole	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female		Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

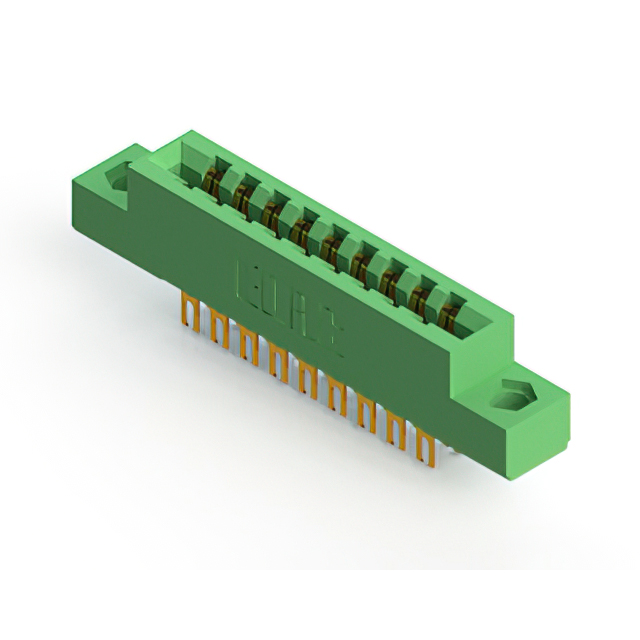

EDAC Inc. 305-018-500-204	Polyester Thermoplastic	2	9	Green	Panel Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Eyelet(s)	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	0.156 "	3.96 mm
EDAC Inc. 305-018-500-208	Polyester Thermoplastic	2	9	Green	Panel Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Eyelet(s)	2		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold

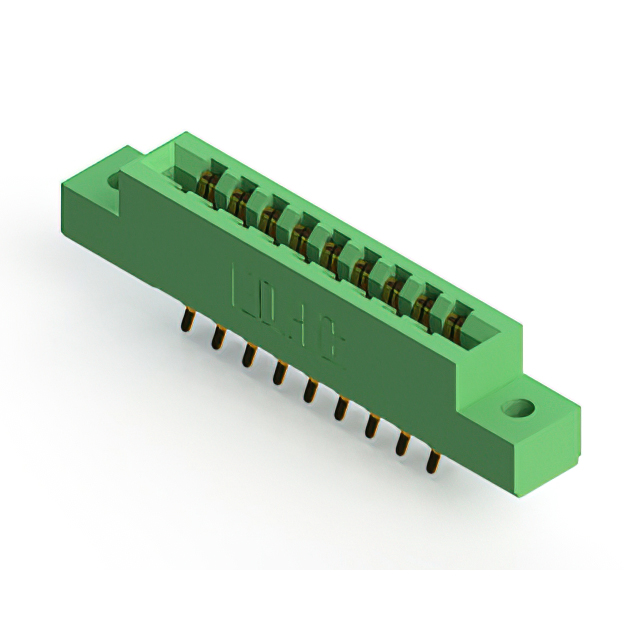

EDAC Inc. 305-018-556-502	Polyester Thermoplastic	2	9	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	18	-40 C	105 ░C	Semi Bellows	0.25 Ám	10 Áin	Female	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	2	Card Extender	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	0.128 "	3.25 mm
