OSTTC02 Series

Catalog

TERM BLK 2P SIDE ENT 5.08MM PCB

Part	Housing Material	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Screw Thread	Mating Orientation	Features	Current	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Color	Positions Per Level	Pitch	Pitch	Mounting Type	Wire Termination	Voltage

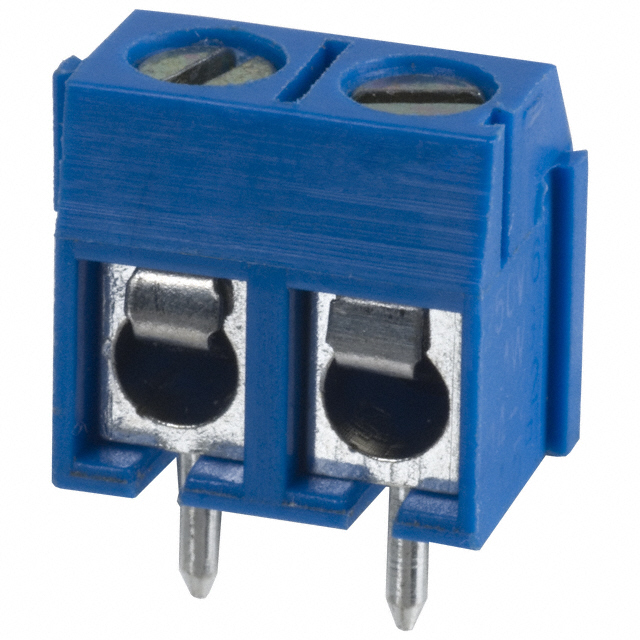

On Shore Technology Inc. OSTTC022162	Thermoplastic	Stainless Steel	2.6 Lb-In	0.3 Nm	Tin Plated	-30 ░C	105 ░C	Steel - Zinc Plated	M2.6	Horizontal with Board	Interlocking (Side)	15 A	14 AWG	22 AWG	1	Blue	2	5.08 mm	0.2 in	Through Hole	Screw - Leaf Spring Wire Guard	300 VDC

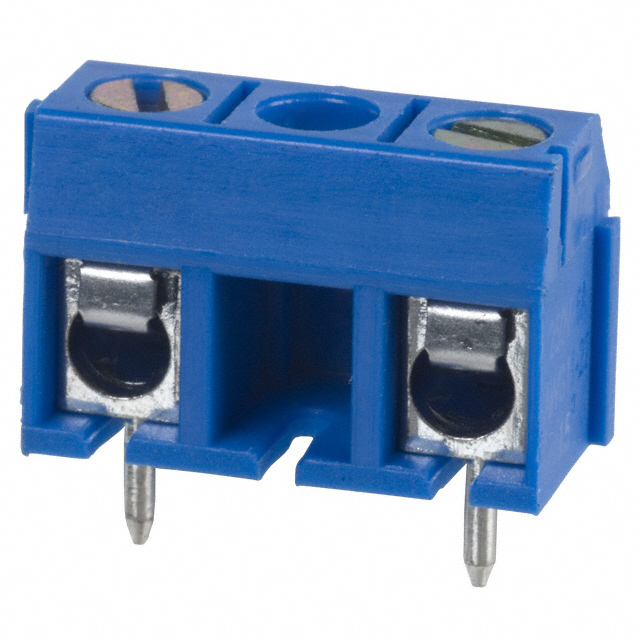

On Shore Technology Inc. OSTTC021162	Polyamide (PA) Nylon	Stainless Steel	3.5 Lb-In	0.4 Nm	Brass	-33 °C	120 °C	Steel Galvanized - Chromate Plated	M2.6	Horizontal with Board	Interlocking (Side)	16 A	14 AWG	22 AWG	1		2	10 mm	0.394 in	Through Hole	Screw - Leaf Spring Wire Guard

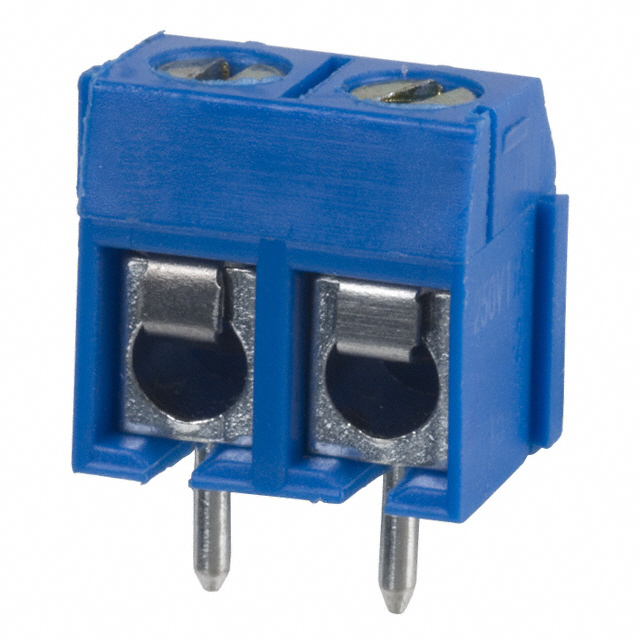

On Shore Technology Inc. OSTTC020162	Thermoplastic	Stainless Steel	2.6 Lb-In	0.3 Nm	Tin Plated	-30 ░C	105 ░C	Steel - Zinc Plated	M2.6	Horizontal with Board	Interlocking (Side)	15 A	14 AWG	22 AWG	1	Blue	2	5 mm	0.197 in	Through Hole	Screw - Leaf Spring Wire Guard	300 VDC
