32589 Series

Catalog

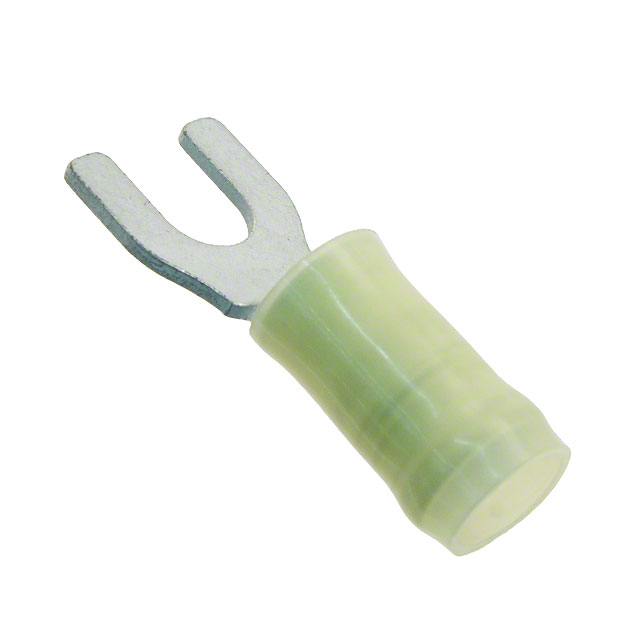

CONN SPADE TERM 10-12AWG #10 YEL

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Terminal Type	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Color	Mounting Type	Contact Material	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall	Material - Insulation	Contact Finish	Length - Termination	Length - Termination	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Features
TE Connectivity Raychem Cable Protection 2-32589-1	5 mm	0.197 in	Standard	7.52 mm	0.296 in	Insulated	12 AWG	10 AWG	Crimp	Yellow	Free Hanging (In-Line)	Copper	0.15 "	3.81 mm	0.23 in	5.84 mm	1.095 in	27.81 mm	Nylon Polyamide (PA)	Tin	0.591 in	15.01 mm	10 Stud	10.31 mm	0.406 in	Serrated Termination
TE Connectivity Raychem Cable Protection 8-32589-2	5 mm	0.197 in	Standard	7.52 mm	0.296 in	Insulated	12 AWG	10 AWG	Crimp	Yellow	Free Hanging (In-Line)	Copper	0.15 "	3.81 mm	0.23 in	5.84 mm	1.095 in	27.81 mm	Nylon Polyamide (PA)	Tin	0.591 in	15.01 mm	10 Stud	10.31 mm	0.406 in	Serrated Termination
