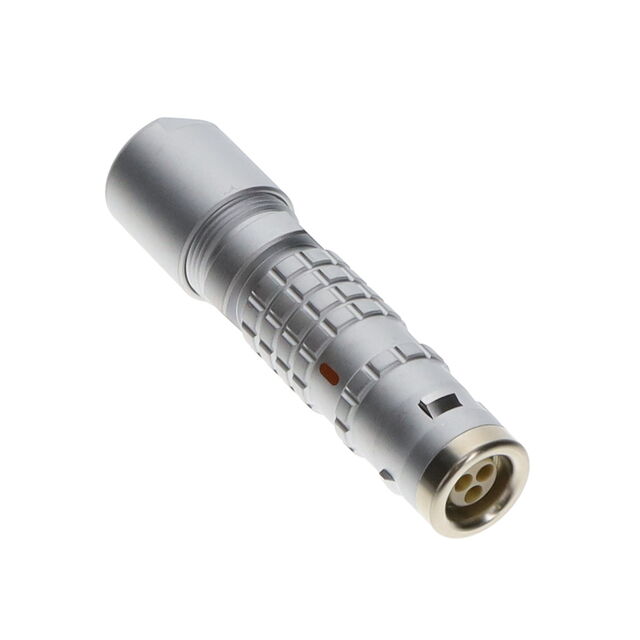

FGL.1K Series

Manufacturer: LEMO

Catalog

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Fastening Type	Connector Type	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shell Material	Features	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Ingress Protection	Color	Shell Size - Insert	Current Rating (Amps)	Insert Material	Mounting Type	Shielding	Orientation	Contact Finish - Mating	Primary Material	Termination	Number of Positions
LEMO FGL.1K.303.CLLC45Z	4.1 mm	0.177 "	0.161 in	4.5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	303	12 Amps	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal
LEMO FGL.1K.303.CLLC60	5.6 mm	0.236 in	0.22 in	6 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	303	12 Amps	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal
LEMO FGL.1K.308.CYMC45Z	4.1 mm	0.177 "	0.161 in	4.5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	308	5 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal	Crimp	8
LEMO FGL.1K.304.CYMC60Z	5.6 mm	0.236 in	0.22 in	6 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	304	10 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal	Crimp	4
LEMO FGL.1K.303.CYMK70Z	6.6 mm	0.276 "	0.26 "	7 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	303	12 Amps	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal	Crimp
LEMO FGL.1K.308.CLLC40Z	3.6 mm	0.157 in	0.142 in	4 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	308	5 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal		8
LEMO FGL.1K.310.CLLC55	5.1 mm	0.217 in	0.201 in	5.5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	310	2.5 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal		10
LEMO FGL.1K.308.CLLC45Z	4.1 mm	0.177 "	0.161 in	4.5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	308	5 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal		8
LEMO FGL.1K.314.CLLC50	4.6 mm	0.197 in	0.181 "	5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	314	2 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal		14
LEMO FGL.1K.302.CLLC50Z	4.6 mm	0.197 in	0.181 "	5 mm	Push-Pull	Plug Female Sockets	Chrome	200 °C	-55 C	UL94 V-0	Brass	Backshell	Brass Chrome	1.5 Ám	59 Áin	Bronze	IP66 IP68	Silver	302	15 A	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Shielded	L	Gold	Metal		2
